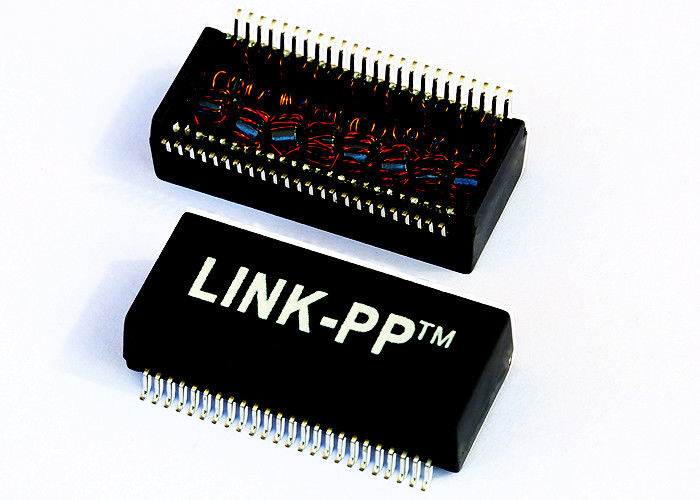

HN4802CG SMD Dual Port 2x 1000Base-T Isolation Magnetics Module LP5014NL
HN4802CG SMD Dual Port 2x 1000Base-T Isolation Magnetics Module LP5014NL

HN4802CG SMD Dual Port 2x 1000Base-T Isolation Magnetics Module LP5014NL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HN4802CG

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description
Highlight:

10/100base-t magnetics

,

ethernet transformer

Specification:
HN4802CG
Part No:
LP5014NL
Family:
2x 10/100/1000Mbps Ethernet
Mounting:
SMD
Pins:
48 Pins
Samples:
Free Available
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specification:
HN4802CG
Part No:
LP5014NL
Family:
2x 10/100/1000Mbps Ethernet
Mounting:
SMD
Pins:
48 Pins
Samples:
Free Available
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
HN4802CG SMD Dual Port 2x 1000Base-T Isolation Magnetics Module LP5014NL
HN4802CG SMD Dual Port 2x 1000Base-T Isolation Magnetics Module
  • LINK-PP LP5014NL SMD Dual Port Gigabit Isolation Modules
  • Cross HN4802CG 10/100/1000BASE-TX
  • Gigabit Ethernet Transformer Connection  Single Port Transformer Module
  • 48Pins Surface Mounting Dual Port  to 1:1 Transceiver
  • Compatible with all leading Phy Manufacturers’ Gigabit IC’s
  • 1CT:1CT



lectrical Specification @25℃
1.Insertion Loss:
1-100MHz:-1.4dB Max
2.Return Loss(dB Min):
1-30MHz:-16 40MHz:-14.4
50MHz:-13.1 60-80MHz:-12
100MHz:-10
3.Crosstalk(dB Min):
30MHz:-43.5 60MHz:-37.5
100MHz:-33
4.DCMR(dB Min):
30MHz:-45 60MHz:-40
100MHz:-35
5.Hipot: 1500Vrms Min
6.Operating Temperature: -40℃～+85℃.



HN4802CG SMD Dual Port 2x 1000Base-T Isolation Magnetics Module

Tags:

100Base-T Transformer,

Gigabit Ethernet Transformer,

Power Over Ethernet Transformer
