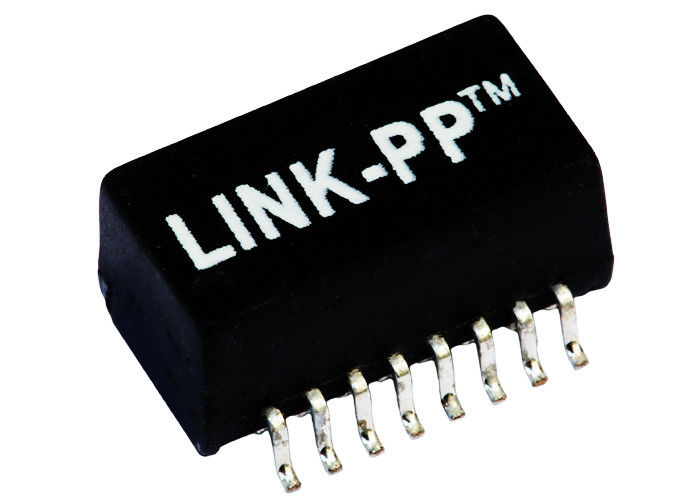

HY60168NE 16Pins 10/100Base-T Single Port Transformer Module LP9016ANL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HY60168NE

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

10/100base-t magnetics

,

ethernet transformer

Specification:
HY60168NE
Part No:
LP9016ANL
Ethernet:
1x10/100Mbps
Mounting Type:
Surface
Pins:
16 Pins
Samples:
Free Available
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specification:
HY60168NE
Part No:
LP9016ANL
Ethernet:
1x10/100Mbps
Mounting Type:
Surface
Pins:
16 Pins
Samples:
Free Available
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
HY60168NE 16Pins 10/100Base-T Single Port Transformer Module LP9016ANL

HY60168NE 16Pins 10/100Base-T Single Port Transformer Module LP9016ANL

  1. LINK-PP LP9016ANL 1x10/100Mbps Magnetics Module
  2. Cross HY60168NE Transformer
  3. High isolation voltages to comply with international safety
  4. Compliant with IEEE 802.3u and ANSI X3.263 standards
  5. including 350uH OCL with 8mA bias.
  6. All materials RoHS and UL compliant.
  7. Bottom Open Type



Electrical Specifications: @25℃
1.Turns Ratio:
PIN(1-3):PIN(16-14)=1:1
PIN(6-8):PIN(11-9)=1:1
2.Primary Inductance PIN(1-3)&PIN(6-8):
350uH MIN.@8mA DC Bias/100KHz/100mV
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss:
1-30MHz:-16dB Min
30-60MHz:-[16-20log(f/30MHz)]dB Typ
60-80MHz:-10dB Min
5.Crosstalk:
1-60MHz:-40dB Typ
60-100MHz:-35dB Typ
6.CMRR:
1-60MHz:-45/-40dB Min
60-100MHz:-40/-35dB Min
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: -40℃~+85℃.
