Name: G4P209NS-1 LF | LP5025NL 1000 BASE –T Quad Port Magnetics Transformer
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LP5025NL
Price: 1.06 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP5025NL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: About 1-2 Days

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 5KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Quad Port Magnetic Module, LAN Discrete Transformer, G4P209NS-1 LF


P/N:	G4P209NS-1 LF	Port No:	Quad Port
Type:	Magnetic Module	Speed:	1000BASE-T
Positions:	72 Pins	HI-POT:	1500Vrms

P/N:	G4P209NS-1 LF
Port No:	Quad Port
Type:	Magnetic Module
Speed:	1000BASE-T
Positions:	72 Pins
HI-POT:	1500Vrms

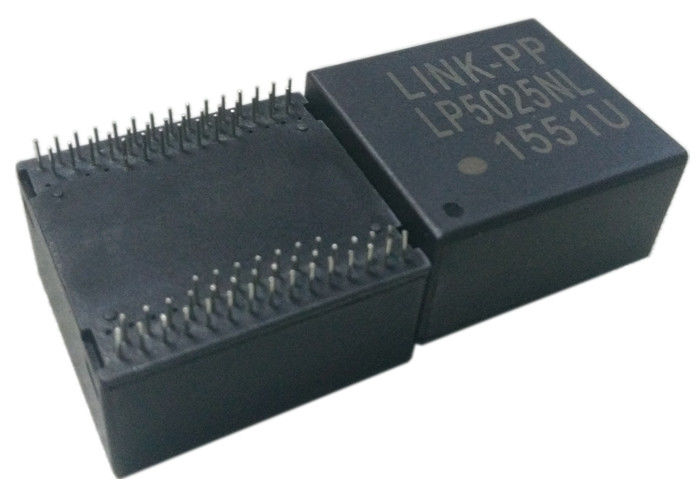

G4P209NS-1 LF | LP5025NL 1000 BASE –T Quad Port Magnetics Transformer

Key Features of G4P209NS-1 LF – 1000BASE-T Quad Port Magnetic Module

Specifically designed for Ethernet 1000BASE-T quad-port applications.
Supports 16 pairs of Category 5 unshielded twisted pair (UTP) cable.
Provides excellent signal isolation and reduced common-mode emissions at the cable interface.
Fully compliant with IEEE 802.3ab specifications for 1000BASE-T Ethernet.
RoHS compliant – free from hazardous substances including Cd, Hg, Cr6+, PBB, PBDE, and Pb on external pins
Operating Temperature Range: 0°C to +70°C.
Storage Temperature Range: -25°C to +105°C.

G4P209NS-1 LF Datasheet

G4P209NS-1 LF | LP5025NL 1000 BASE –T Quad Port Magnetics Transformer 0

Electrical Specifications @ 25°C for G4P209NS-1 LF

Basic Parameters

Parameter	Value	Notes
Part Number	G4P209NS-1 LF	1000 BASE-T Quad Port Magnetics Module
Turns Ratio TX	1CT:1CT	±5%
Turns Ratio RX	1CT:1CT	±5%
OCL	350 μH Min	@100KHz/0.1V with 8mA DC Bias
HI-POT	1500 Vrms	-

Cross-talk Attenuation (dB Min)

Frequency	Value
30MHz	-40
60MHz	-35
100MHz	-30

Insertion Loss (dB Max)

Frequency Range	Value
1-100MHz	-1.0

Return Loss (dB Min) @ Load 100Ω

Frequency	Value
1-30MHz	-18
40MHz	-14.4
50MHz	-13.1
60-80MHz	-12
100MHz	-12

Differential to Common Mode Rejection (DCMR) (dB Min)

Frequency	Value
30MHz	-40
60MHz	-35
100MHz	-30
