Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: GST5009M LF
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
G4P209NS-1 LF |
Part No: |
LP82426ANL |
Family: |
1x 10/100/1000Mbps Ethernet |
Mounting: |
SMD |
Position: |
24 Pins |
Samples: |
Available |
Specification: |
G4P209NS-1 LF |
Part No: |
LP82426ANL |
Family: |
1x 10/100/1000Mbps Ethernet |
Mounting: |
SMD |
Position: |
24 Pins |
Samples: |
Available |

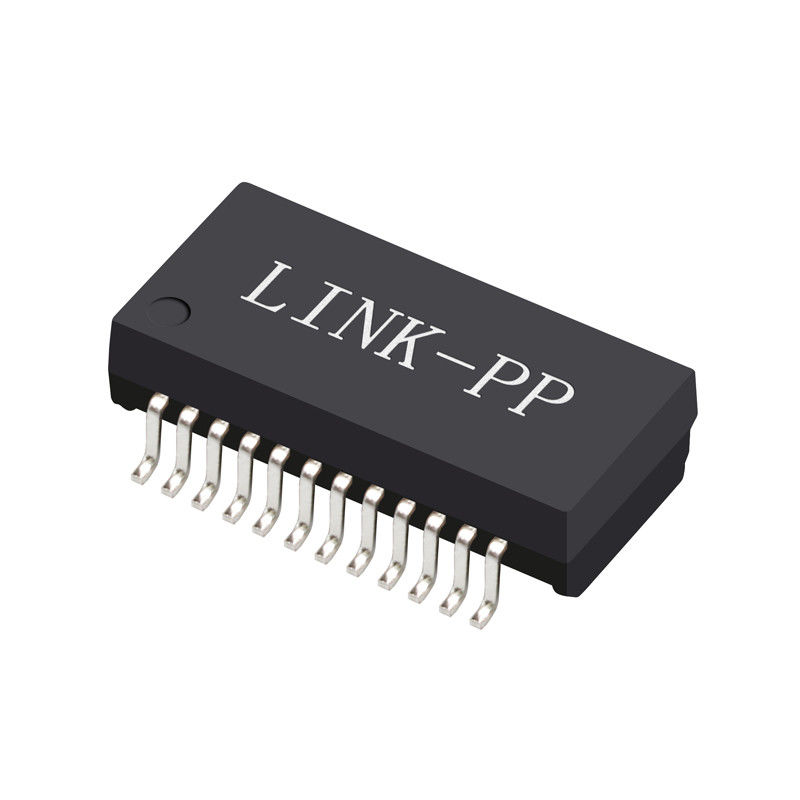

LINK-PP LP82426ANL Gigabit Magnetic Models
Designed for long haul gigabit Ethernet 1000 BASE-T, full duplex applications.
Supports 4 pairs of category 5 UTP cable.
Cross Equivalent to GST5009M Specifications
Cable interface for isolation and low common modeemissions.
Compliant with IEEE 802.3ab standard for 1000 BASE-T.
Comply with RoHS & Halogen Free requirements.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +85℃.
| Electrical Specifications @25℃ 1.Turn Ratio(TX/RX): Pri∶Sec=1CT∶1CT ± 5% 2.Inductance OCL: 350uH Min @100KHz/0.1V 8mA DC BLAS 3.Insertion Loss: 0.3-125MHz:-1.2dB Max 4.Return Loss(@100Ω): 0.3-40MHz:-16dB Min 40-100MHz:-[10-20LOG10(f/80MHz)]dB Min 5.Crosstalk: 1MHz:-50dB Typ 10-100MHz:-[55-22LOG10(f/10MHz)]dB Typ 6.DCMR: 2MHz:-50dB Typ 30-200MHz:-[43-22LOG10(F/30MHz)]dB TyP 7.Isolation Voltage: 1500VAC/0.5mA 3Sec 8.Operating Temperature: -40℃～+85℃. |
|
|
|
