Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-79EBPZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-79EBPZ |
Data Rate: |
10.3125 GBd |
Wavelength: |
850nm |
Maximun Distance: |
150m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
LC |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
AFBR-79EBPZ |
Data Rate: |
10.3125 GBd |
Wavelength: |
850nm |
Maximun Distance: |
150m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
LC |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | AFBR-79EBPZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | QSFP+ |

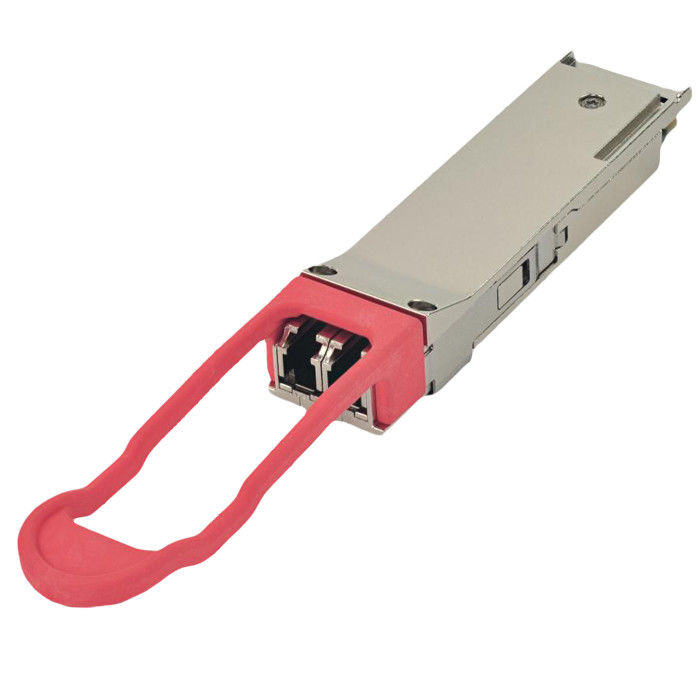

| Product Name: | QSFP+ Optical Transceivers |
| Status Available: | Limited Release |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
10.3125 GBd |
| Wavelength: | 850nm |
| Maximun Distance: | 150m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL |
| Voltage-Supply: | 3.3V |
| Applications: | Telecom/Datacom Systems |
| Connector Type: | LC |
| Mounting Type: | Pluggable,QSFP+ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
|
Feature Description:
|
● Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
● Compliant to QSFP+ SFF-8436 Specification
● Power Level 4: Max Power 3.5W
● Class 1M Eye Safety
● High Port Density: 21mm Horizontal Port Pitch
● Operates at 10.3125 Gbps per Electrical Channel with 64b/66b Encoded Data
● Links up to 100 Meters using OM3 and 150 Meters using OM4 Optical Fiber
● +10 to +70ºC Case Temperature Operating Range
● Proven High Reliability Technology: Avago VCSEL Transmitters & Avago PIN Receiver
● Hot Pluggable Transceiver for Ease of Installation and Servicing
● Two Wire Serial (TWS) Management Interface with Maskable Interrupts for Expanded Functionality
● Utilizes a Standard LC Duplex Fiber Cable Allowing Reuse of Existing 10G MMF Cable Infrastructure
