Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-83CDZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-83CDZ |
Data Rate: |
12.5 Gbe |
Wavelength: |
850nm |
Maximun Distance: |
65m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL Array |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,CXP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
AFBR-83CDZ |
Data Rate: |
12.5 Gbe |
Wavelength: |
850nm |
Maximun Distance: |
65m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL Array |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,CXP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | AFBR-83CDZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | CXP |

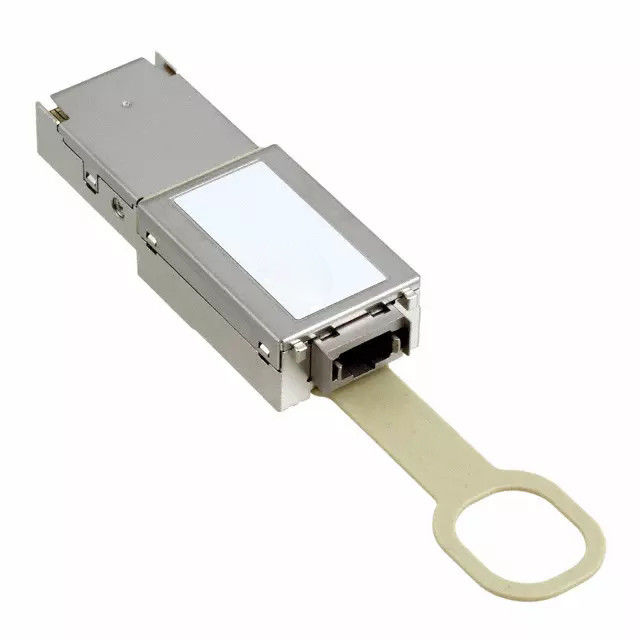

| Product Name: | CXP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
12.5 Gbe |
| Wavelength: | 850nm |
| Maximun Distance: | 65m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL Array |
| Voltage-Supply: | 3.3V |
| Applications: | Telecom/Datacom Systems |
| Connector Type: | MTP (MPO) |
| Mounting Type: | Pluggable,CXP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1 (Unlimited) |
|
Feature Description:
|
● Compliant to SFF-8642: Mini Multilane Series: Shielded Integrated Connector, and InfiniBand Architecture Specification V2 R1.3 for CXP Interface
● Multi-rate Capability from 11 to 12.5 Gbps per Channel with 64b/66b encoded data for proprietary application
● High Channel Capacity: 150 Gbps per Module
● Hot Pluggable for Easy System Installation
● Link Distance up to 50 m using OM3 Fiber and 65 m using OM4 Fiber
● 0 to +70 °C Case Temperature Operating Range
● Low Power Dissipation: < 3.5 W
● Proven High Reliability 850nm Technology: Avago VCSEL Array Transmitter and Avago PIN Array Receiver
● Two Wire Serial (TWS) Interface with Maskable Interrupt for Expanded Functionality Including:
● Individual Channel Functions: Channel/Output Disable, Squelch Disable, and Lane Polarity Inversion
● Diagnostic Monitoring Functions: Module Temperature and Supply Voltages, per Channel Laser Current and Laser Power, and Input Receiver Power
● Status per Channel: Tx Fault, Electrical (Transmitter) and Pptical (Receiver) LOS, and Alarm Flags
● Programmable Equalization and De-Emphasis Settings for Optimizing System Performance
● Standard 24 Lane Optical Fiber with MTP (MPO) Optical Connector for High Density and Thin, Light Weight Cable Management
