Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-5922ALZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-5922ALZ |
Data Rate: |
2.125 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
500m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Optical |
Connector: |
LC Duplex |
Mounting: |
Pluggable, SFF |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
AFBR-5922ALZ |
Data Rate: |
2.125 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
500m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Optical |
Connector: |
LC Duplex |
Mounting: |
Pluggable, SFF |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | AFBR-5922ALZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFF |

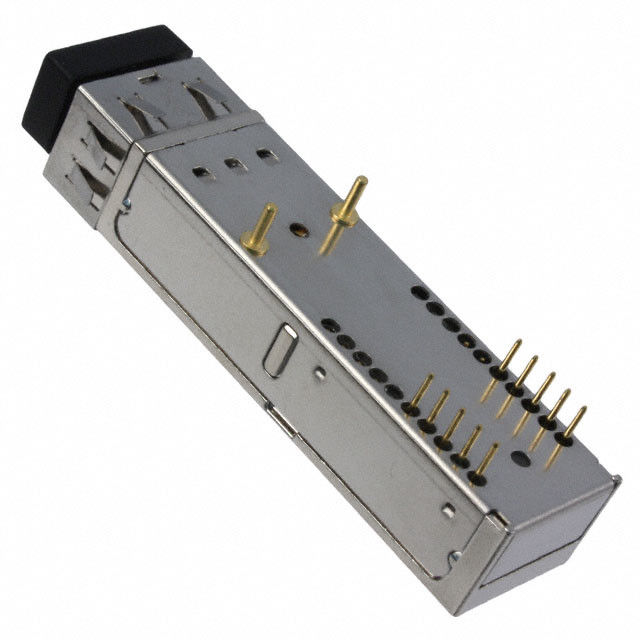

| Product Name: | SFF Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
2.125 Gbd |
| Wavelength: | 850nm |
| Maximun Distance: | 500m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL |
| Voltage-Supply: | 3.3V |
| Applications: | Optical |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable, SFF |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
|
Feature Description:
|
●Compatible with proprietary links with data rates up to 16 Gbps
● Fully RoHS Compliant
● Data Rate Specifications: 2.125 GBd Operation for FC-PI 200-M5-SN-I and FC-PI 200-M6-SN-I; 1.0625 GBd Operation for FC-PI 100-M5-SN-I and FC-PI 100-M6-SN-I.
● Link Lengths at 2.125 GBd:
0.5 to 300 m – 50/125 μm MMF
0.5 to 150 m – 62.5/125 μm MMF
● Link Lengths at 1.0625 GBd:
0.5 to 500 m – 50/125 μm MMF
0.5 to 300 m – 62.5/125 μm MMF
● 850 nm Vertical Cavity Surface Emitting Laser (VCSEL)
● Laser AEL Class I (Eye Safe) per:
US 21 CFR (J)
EN 60825-1 ( All)
● Industral Temperature and Supply Voltage Operation (-40ºC to +85ºC, 3.3V ± 1%)
● Industry Standard 2x5 SFF Package
● Wave Solder and Aqueous Wash Process Compatible
