Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: FTLC1151RDPL
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
FTLC1151RDPL |
Data Rate: |
103.1 Gbps |
Wavelength: |
1300nm |
Maximun Distance: |
10000m |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpose |
Connector: |
LC Duplex |
Mounting: |
Pluggable, QSFP28 |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
Specifications: |
FTLC1151RDPL |
Data Rate: |
103.1 Gbps |
Wavelength: |
1300nm |
Maximun Distance: |
10000m |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpose |
Connector: |
LC Duplex |
Mounting: |
Pluggable, QSFP28 |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
| Specifications: | FTLC1151RDPL |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | QSFP28 |

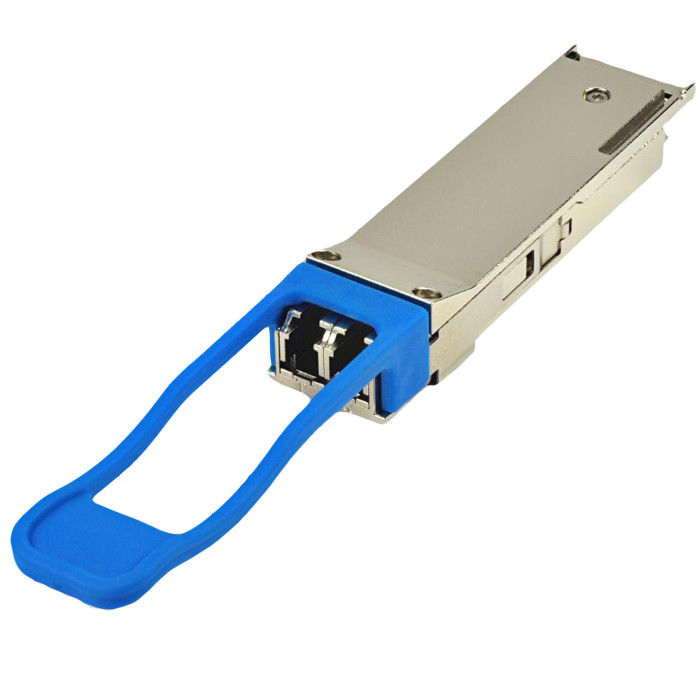

| Product Name: | QSFP28 Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
103.1 Gbps |
| Wavelength: | 1300nm |
| Maximun Distance: | 10000m |
| Fiber Type: | Singlemode Glass |
| Emitter: | DWDM EML |
| Voltage-Supply: | 3.3V |
| Applications: | Ethernet |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,QSFP28 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1 (Unlimited) |
|
Feature Description:
|
● Hot-pluggable QSFP28 form factor
● Supports 103.1Gb/s aggregate bit rate
● Power dissipation < 3.5W
● RoHS-6 compliant
● Commercial case temperature range of 0°C to 70°C
● Single 3.3V power supply
● Maximum link length of 10km on Single Mode Fiber (SMF)
● 4x26Gb/s DFB-based LAN-WDM transmitter
● 4x26G retimed electrical interface
● Duplex LC receptacles
● I2C management interface
