Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-57D9AMZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-57D9AMZ |
Data Rate: |
8.5,4.25,2.125GBd |
Wavelength: |
850nm |
Maximun Distance: |
500m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Fibre Channel Links |
Connector: |
LC Duplex |
Mounting: |
Pluggable, SFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
AFBR-57D9AMZ |
Data Rate: |
8.5,4.25,2.125GBd |
Wavelength: |
850nm |
Maximun Distance: |
500m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Fibre Channel Links |
Connector: |
LC Duplex |
Mounting: |
Pluggable, SFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | AFBR-57D9AMZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFP+ |

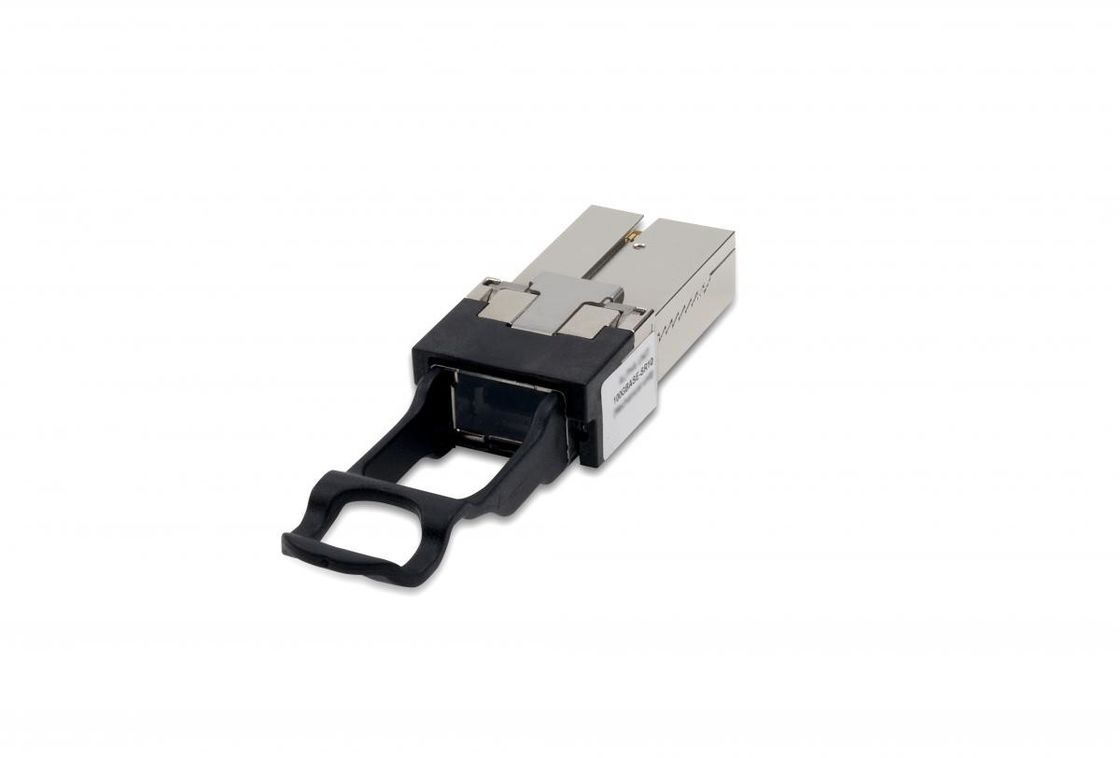

| Product Name: | SFP+ Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
8.5,4.25,2.125GBd |
| Wavelength: | 850nm |
| Maximun Distance: | 500m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL |
| Voltage-Supply: | 3.3V |
| Applications: | Fibre Channel Links |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP+ |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
|
Feature Description:
|
● Compliant to Restriction on Hazardous Substances Compliant to Restriction on Hazardous Substances (RoHS) directive
● Rate Select not required
● Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
● Real time monitoring of:
Transmitted optical power
Received optical power
Laser bias current
Temperature
Supply voltage
● SFP Plus Mechanical Applications
● Wide temperature and supply voltage operation (-10°C to 85°C) (3.3 V ± 10%)
● Transceiver specifications per SFP (SFF-8074i) Multi-Source Agreement and SFF-8472 (revision 10.3)
8.5 GBd Fibre Channel operation for FC-PI-4 800-M5-SN-S, 800-M6-SN-S and 800-M5E-SN-I
4.25 GBd Fibre Channel operation for FC-PI 400-M5-SN-I , 400-M6-SN-I and 400 M5E-SN-I
2.125 GBd Fibre Channel operation for FC-PI 200-M5-SN-I , 200-M6-SN-I and 200 M5E-SN-I
Link lengths at 8.5 GBd: 21m with 62.5um OM1, 50m with 50um OM2, 150m with 50um OM3, 190m with 50um OM4
Link lengths at 4.25 GBd: 70m with 62.5um OM1, 150m with 50um OM2, 380m with 50um OM3, 400m with 50um OM4
● Link lengths at 2.125 GBd: 150m with 62.5um OM1, 300m with 50um OM2, 500m with 50um OM3
● LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
● 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source technology
● IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
● Enhanced EMI performance for high port density applications
