Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-720XPDZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-720XPDZ |
Data Rate: |
10.3125Gbps |
Wavelength: |
850nm |
Maximun Distance: |
300m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Networking |
Connector: |
XFP |
Mounting: |
Through Hole |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
AFBR-720XPDZ |
Data Rate: |
10.3125Gbps |
Wavelength: |
850nm |
Maximun Distance: |
300m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Networking |
Connector: |
XFP |
Mounting: |
Through Hole |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | AFBR-720XPDZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | XFP |

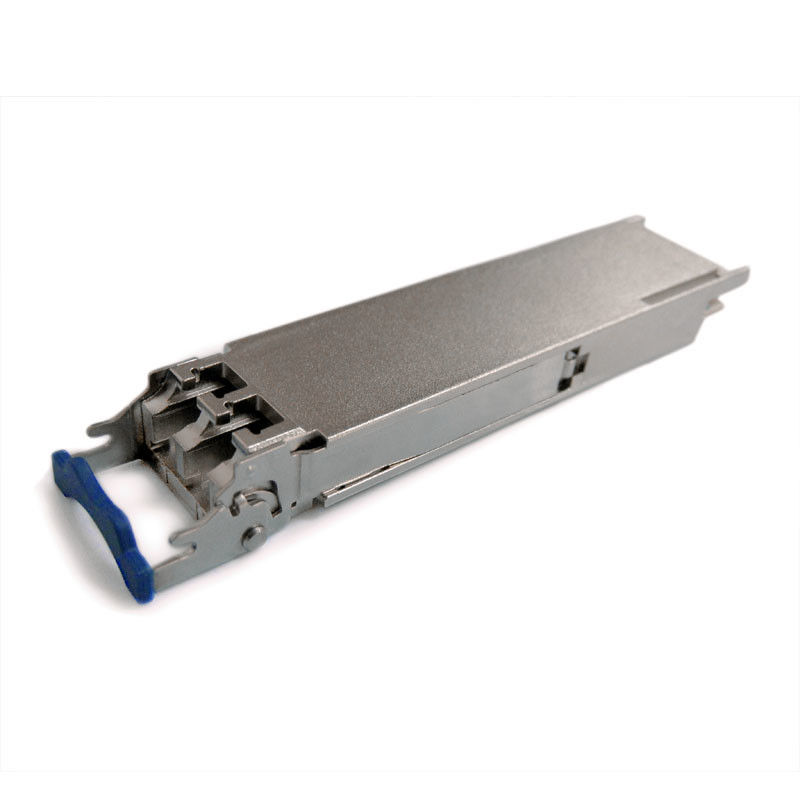

| Product Name: | XFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
10.3125 Gbps |
| Wavelength: | 850nm |
| Maximun Distance: | 300m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL |
| Voltage-Supply: | 3.3V |
| Applications: | Networking |
| Connector Type: | XFP |
| Mounting Type: | Through Hole |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
|
Feature Description:
|
● Compliant to Restriction on Hazardous Substances Compliant to Restriction on Hazardous Substances (RoHS) directive Compliant to Restriction on Hazardous Substances (RoHS) directive Compliant to RoHS directives Fully RoHS Compliant Avago 850nm VCSEL source and Transmitter Optical Subassembly technology Avago 850nm VCSEL source and Transmitter Optical Subassembly technology Avago 850nm VCSEL source and Transmitter Optical Subassembly (TOSA) technology Avago 850nm VCSEL Source & Transmitter Optical Sub-Assembly (TOSA) Technology Industrial operating temperature range (-40C to +85C) Avago 850nm VCSEL source and transmitter optical subassembly (TOSA) technology Avago 850nm VCSEL source and Transmitter Optical Subassembly technology Compliant to 100GbE IEEE 802.3 Specifications (100GBASE-LR4, CAUI-4) up to 10km of SMF Compliant to 100GbE IEEE 802.3 Specifications (100GBASE-LR4, CAUI-4) up to 10km of SMF RoHS 6/6 Compliance
● Compliant to XFP MSA
● Compliant to IEEE 802.3ae 10GBASE-SR for 10GbE, 10.3125 Gb/s
● Complian XFI 10G Serial electrical interface
● 3.3V single power supply
● Avago Technologies’ 850 nm VCSEL Laser and PIN Photodiode
● No reference clock required
● LC Duplex optical connector interface conforming to ANSITIA/EIA604-10 (FOCIS 10)
● 1.5W maximum
● Link Lengths up to 300 m with 0M3 fiber
● 0 to 70°C case operating temperature range
● Superior Thermal and EMI integrity performance to support high port densities
● Customizable clip-on heatsink to support a variety of line card environments
● IEC 60825-1 Class 1/CDRH Class 1 laser eye safety
