Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-79EQDZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-79EQDZ |
Data Rate: |
10.312 Gbd |
Wavelength: |
850nm |
Maximun Distance: |
100m |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpose Data Transmission Systems |
Connector: |
LC |
Mounting: |
Pluggable, QSFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
Specifications: |
AFBR-79EQDZ |
Data Rate: |
10.312 Gbd |
Wavelength: |
850nm |
Maximun Distance: |
100m |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpose Data Transmission Systems |
Connector: |
LC |
Mounting: |
Pluggable, QSFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
| Specifications: | AFBR-79EQDZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | QSFP |

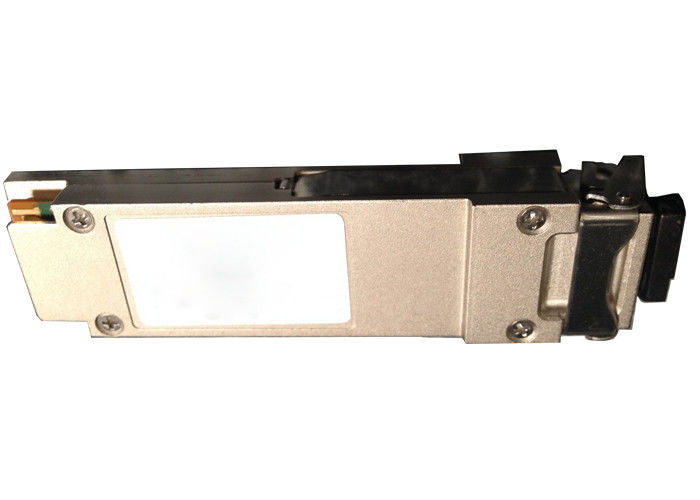

| Product Name: | QSFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
10.312 Gbd |
| Wavelength: | 850nm |
| Maximun Distance: | 100m |
| Fiber Type: | Singlemode Glass |
| Emitter: | DWDM EML |
| Voltage-Supply: | 3.3V |
| Applications: | General Purpose Data Transmission Systems |
| Connector Type: | LC |
| Mounting Type: | Pluggable,QSFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1 (Unlimited) |
|
Feature Description:
|
• Compliant to the 40GBASE-SR4 and XLPPI Specification
per IEEE 802.3ba-2010 and supporting 40G-IB-QDR /
20G-IB-DDR / 10G-IB-SDR applications
• Compliant to the industry standard SFF-8436 QSFP+
Specification Revision 3.5
• Power Level 1: Max Power <1.5W
• High port density: 21mm horizontal port pitch
• Operate at 10.3125 Gbps per channel with 64b/66b
encoded data for 40GbE application and at 10 Gbps
with 8b/10b compatible encoded data for 40G-IB-QDR
application
• Links up to 100m using OM3 fiber and 150m using
OM4 fiber
• Supports optical interoperability with 10GBASESR
modules per IEEE 802.3ae standard provided the
receiver overload of 10G modules sustains up to 2.4
dBm input optical power
• 0 to 70°C case temperature operating range
• Proven High Reliability 850 nm technology: Avago
VCSEL array transmitter and Avago PIN array receiver
• Hot pluggable transceiver for servicing and ease of
installation
• Two Wire Serial (TWS) interface with maskable
interrupts for expanded functionality
• Utilizes a standard 12/8 lane optical fiber with MTP
(MPO) optical connector for high density and thin,
light-weight cable management
