Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-79EEPZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFCT-79EEPZ |
Data Rate: |
10.3125Gbps |
Wavelength: |
850nm |
Maximun Distance: |
400m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Networking |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
AFCT-79EEPZ |
Data Rate: |
10.3125Gbps |
Wavelength: |
850nm |
Maximun Distance: |
400m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Networking |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | AFCT-79EEPZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | QSFP+ |
| Product Name: | QSFP+ Optical Transceivers |
| Status Available: | Limited Release |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate |
10.3125 Gbps |
| Wavelength | 850nm |
| Maximun Distance | 400m |
| Fiber Type | Multimode Glass |
| Emitter | VCSEL |
| Voltage-Supply | 3.3V |
| Applications | Ethernet |
| Connector Type | MTP® (MPO) |
| Mounting Type | Pluggable,QSFP+ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level(MSL) | 1(Unlimited) |
|
Feature Description:
|
• An alternative solution of IEEE 802.3ba 40GBASE-LR4
modules to extend the support of MMF reach with low
power and low cost in the data center applications
• Compliant to the 40GbE IEEE 802.3ba-2010
specifications (40GBASE-SR4 and XLPPI) and per
channel basis to the IEEE 802.3ae 10GBASE-SR optical
specification
• Fiber links to a QSFP+ eSR4 module up to 300m (400m)
using OM3 (OM4) MMF, and to a QSFP+ SR4 module up
to 100m (150m) using OM3 (OM4) MMF
• Support optical interoperability up to 300m (400m)
using OM3 (OM4) MMF with IEEE 802.3ae 10GBASESR
compliant modules of various form factors such as
SFP+, XFP and X2
• Compliant to industry-standard QSFP+ SFF-8436
Specification Revision 4.1
• Power Level 1: Max Power < 1.5W
• High port density: 21mm horizontal port pitch

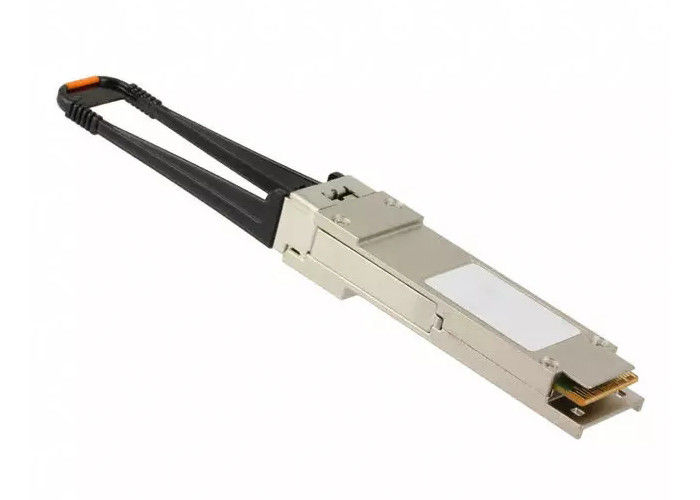

• Push-pull tab: ease of transceiver insertion and
extraction; tab front clip color coded "Orange" for eSR4
identification
• Operates at 10.3125 Gbps per channel with 64b/66b
encoded data
• 0 to 70°C case temperature operating range
• Proven High Reliability 850 nm technology: Avago
VCSEL array transmitter and Avago PIN array receiver
• Hot pluggable transceiver for servicing and ease of
installation
• Two Wire Serial (TWS) interface with Digital Monitoring
and maskable interrupts for expanded functionality
• Utilizes a standard 12/8 lane optical fiber with MTP®
(MPO) optical connector for high density and thin,
light-weight cable management.
