Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-79EIDZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-79EIDZ |
Data Rate: |
40 Gbe |
Wavelength: |
850nm |
Maximun Distance: |
150m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
AFBR-79EIDZ |
Data Rate: |
40 Gbe |
Wavelength: |
850nm |
Maximun Distance: |
150m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | AFBR-79EIDZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | QSFP+ |

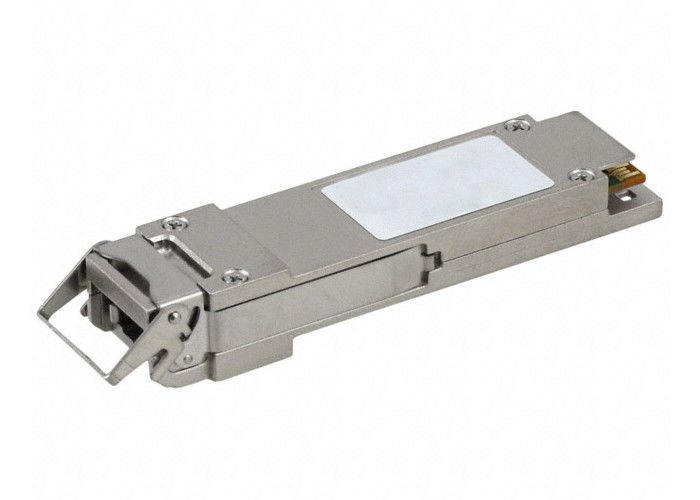

| Product Name: | QSFP+ Optical Transceivers |
| Status Available: | Limited Release |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
40 Gbe |
| Wavelength: | 850nm |
| Maximun Distance: | 150m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL |
| Voltage-Supply: | 3.3V |
| Applications: | Telecom/Datacom Systems |
| Connector Type: | MTP (MPO) |
| Mounting Type: | Pluggable,QSFP+ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
|
Feature Description:
|
• Compliant to the 40GBASE-SR4 and XLPPI Specifications
per IEEE 802.3ba-2010
• Support optical interoperability with IEEE 802.3ae
10GBASE-SR modules of various form factors such as
SFP+, XFP, and X2
• Support 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR
applications
• Compliant to the industry standard SFF-8436 QSFP+
Specification Revision 3.5
• Power Level 1: Max Power <1.5W
• High port density: 21mm horizontal port pitch
• Operates at 10.3125 Gbps per channel with 64b/66b
encoded data for 40GbE / 10GbE applications and at
10 Gbps with 8b/10b compatible encoded data for
40G-IB-QDR application
• Links up to 100m using OM3 fiber and 150m using
OM4 fiber
• 0 to 70°C case temperature operating range
• Proven High Reliability 850 nm technology: Avago
VCSEL array transmitter and Avago PIN array receiver
• Hot pluggable transceiver for servicing and ease of
installation
• Two Wire Serial (TWS) interface with maskable
interrupts for expanded functionality
• Utilizes a standard 12/8 lane optical fiber with MTP
(MPO) optical connector for high density and thin,
light-weight cable management
