Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-79EIPZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-79EIPZ |
Data Rate: |
40 Gbe |
Wavelength: |
850nm |
Maximun Distance: |
150m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
AFBR-79EIPZ |
Data Rate: |
40 Gbe |
Wavelength: |
850nm |
Maximun Distance: |
150m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | AFBR-79EIPZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | QSFP+ |

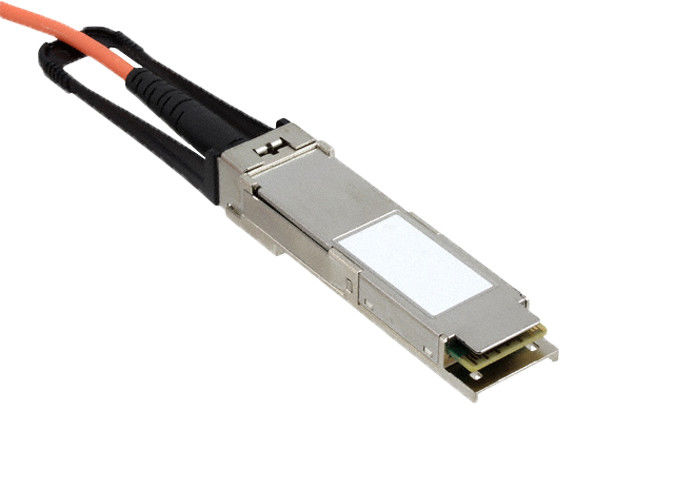

| Product Name: | QSFP+ Optical Transceivers |
| Status Available: | Limited Release |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate |
40 Gbe |
| Wavelength | 850nm |
| Maximun Distance | 150m |
| Fiber Type | Multimode Glass |
| Emitter | VCSEL |
| Voltage-Supply | 3.3V |
| Applications | Telecom/Datacom Systems |
| Connector Type | MTP (MPO) |
| Mounting Type | Pluggable,QSFP+ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level(MSL) | 1(Unlimited) |
|
Feature Description:
|
• Compliant to the 40GBASE-SR4 and XLPPI Specifications
per IEEE 802.3ba-2010
• Support optical interoperability with IEEE 802.3ae
10GBASE-SR modules of various form factors such as
SFP+, XFP, and X2
• Support 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR
applications
• Compliant to the industry standard SFF-8436 QSFP+
Specification Revision 3.5
• Power Level 1: Max Power <1.5W
• High port density: 21mm horizontal port pitch
• Operates at 10.3125 Gbps per channel with 64b/66b
encoded data for 40GbE / 10GbE applications and at
10 Gbps with 8b/10b compatible encoded data for
40G-IB-QDR application
• Links up to 100m using OM3 fiber and 150m using
OM4 fiber
