Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: FTL4C1QM1C
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
FTL4C1QM1C |
Data Rate: |
44.6 Gbps |
Wavelength: |
1310nm |
Maximun Distance: |
10000m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet, Fibre Channel |
Connector: |
LC Duplex |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
FTL4C1QM1C |
Data Rate: |
44.6 Gbps |
Wavelength: |
1310nm |
Maximun Distance: |
10000m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet, Fibre Channel |
Connector: |
LC Duplex |
Mounting: |
Pluggable,QSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | FTL4C1QM1C |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | QSFP+ |

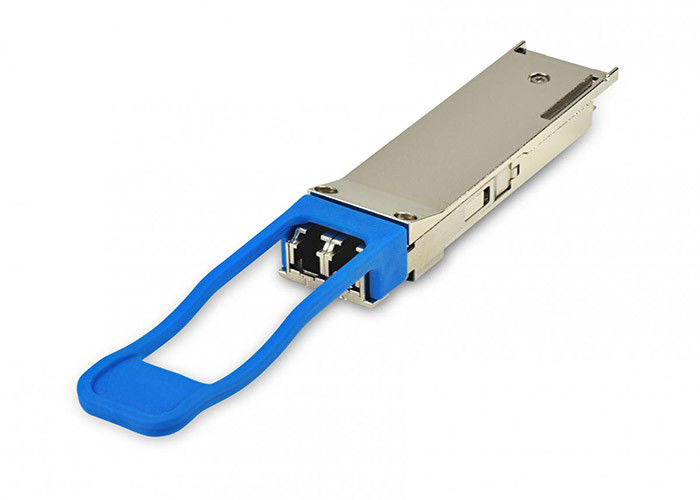

| Product Name: | QSFP+ Optical Transceivers |
| Status Available: | Limited Release |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate |
44.6 Gbps |
| Wavelength | 1310nm |
| Maximun Distance | 10000m |
| Fiber Type | Multimode Glass |
| Emitter | VCSEL |
| Voltage-Supply | 3.3V |
| Applications | Ethernet, Fibre Channel |
| Connector Type | LC Duplex |
| Mounting Type | Pluggable,QSFP+ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level(MSL) | 1(Unlimited) |
|
Feature Description:
|
● Hot-pluggable QSFP+ form factor
●Supports 39.8 Gb/s to 44.6 Gb/s aggregate bit rates
● Power dissipation < 3.5W
● RoHS-6 compliant (lead-free)
● Commercial case temperature range 0°C to 70°C
● Single 3.3V power supply
● Maximum link length of 10km on Single Mode Fiber (SMF)
● Uncooled 4x10Gb/s CWDM transmitter
● XLPPI electrical interface
● Duplex LC receptacles
● Built-in digital diagnostic functions, including Tx/Rx power monitoring
