Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: DEM-314GT
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
DEM-314GT |
Optical Receiver Sensitivity: |
-22dBm (max) |
Connector Type: |
LC |
Supply Voltage: |
3.1 ~ 3.5V |
Maximum Voltage: |
6.0V |
Maximum Current: |
300mA |
Class 1 Laser: |
EN 60825-1 |
FDA 21: |
1040.10 & 1040.11 |
Dimensions (W X D X H): |
3.02x 1.19 X 5.71cm |
Lead Free Status / RoHS Status: |
Lead Free / RoHS Compliant |
Specifications: |
DEM-314GT |
Optical Receiver Sensitivity: |
-22dBm (max) |
Connector Type: |
LC |
Supply Voltage: |
3.1 ~ 3.5V |
Maximum Voltage: |
6.0V |
Maximum Current: |
300mA |
Class 1 Laser: |
EN 60825-1 |
FDA 21: |
1040.10 & 1040.11 |
Dimensions (W X D X H): |
3.02x 1.19 X 5.71cm |
Lead Free Status / RoHS Status: |
Lead Free / RoHS Compliant |

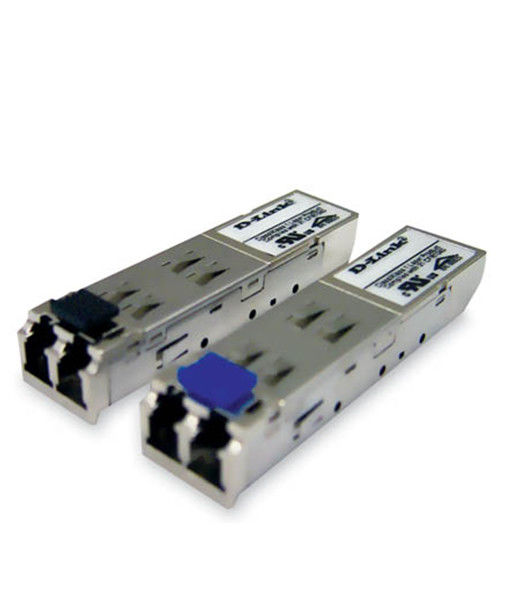

Single-mode Fiber Transceiver (35 km)
- 1000BASE-LX port (IEEE 802.3z standard)
- Duplex LC connector
- Very low jitter
- Full duplex operation
- 802.3x flow control support
- Fiber type: 9/125um single-mode fiber up to 35 km
- Wave length: 1310nm
- Power supply: 3.3V
- Power budget: 22dB
- Hot pluggable
- Class 1 laser product complies with EN 60825-1
- TTL signal detect indicator
- Metal enclosure for lower EMI
1000BASE-LH Gigabit Interface Converter
