Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-5715ALZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-5715ALZ |
Data Rate: |
1.25Gbps |
Wavelength: |
850nm |
Maximun Distance: |
550m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
Specifications: |
AFBR-5715ALZ |
Data Rate: |
1.25Gbps |
Wavelength: |
850nm |
Maximun Distance: |
550m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
| Specifications: | AFBR-5715ALZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFP |

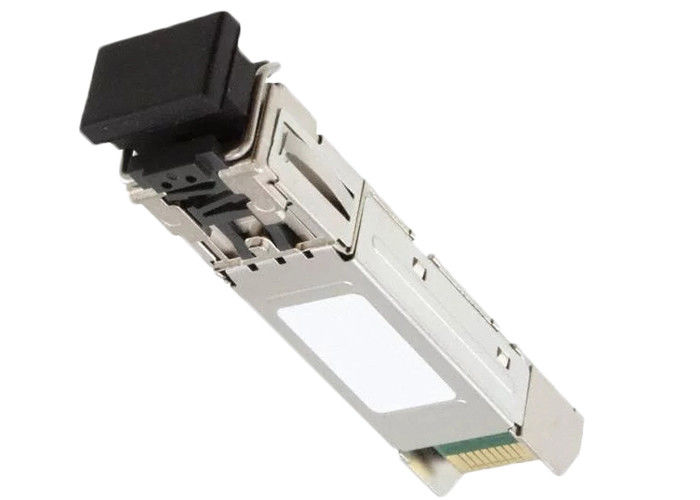

| Product Name: | SFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
1.25 Gbps |
| Wavelength: | 850nm |
| Maximun Distance: | 550m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL |
| Voltage-Supply: | 3.3V |
| Applications: | Ethernet |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
|
Feature Description:
|
● ROHS-6 Compliant
● Compliant to IEEE 802.3 Gigabit Ethernet (1.25GBd) 1000BaseSX & Fiber Channel FC-PI 100-M5-SN-I & 100-M6-SN-I
● Optional Digital Diagnostic Monitoring available
● AFBR-5701Z family: without DMI
● AFBR-5705Z family: with DMI
● Per SFF-8472, diagnostic features on AFBR-5705Z family enable Diagnostic Monitoring Interface for optical transceivers with real-time monitoring of:
● Transmitted optical power
● Received optical power
● Laser bias current
● Temperature
● Supply voltage
● Transceiver specifications according to SFP Multi-Source Agreement (SFF-8074i) and SFF-8472, Revision 9.3
● Manufactured in an ISO 9001 compliant facility
● Hot-pluggable
● Temperature options
● (Extended) -10°C to 85°C
● (Industrial) -40°C to 85°C
● 3.3 V DC power supply
● Industry leading EMI performance for high port density
● 850 nm Vertical Cavity Surface Emitting Laser (VCSEL)
● Eye safety certified
● LC-Duplex fiber connector compliant
|
Part Number Options:
|
The AFBR-571xZ SFP family includes the following products:
| Part Number | DMI | Temperature | Latch |
| AFBR-5710LZ | NO | Extended | Standard |
| AFBR-5710PZ | NO | Extended | Bail |
| AFBR-5710ALZ | NO | Industrial | Standard |
| AFBR-5710APZ | NO | Industrial | Bail |
| AFBR-5715LZ | Yes | Extended | Standard |
| AFBR-5715PZ | Yes | Extended | Bail |
| AFBR-5715ALZ | Yes | Industrial | Standard |
| AFBR-5715APZ | Yes | Industrial | Bail |
* Extended Temperature Range is -10℃ to 85℃
Industrial Temperature Range is -40℃ to 85℃.
