Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

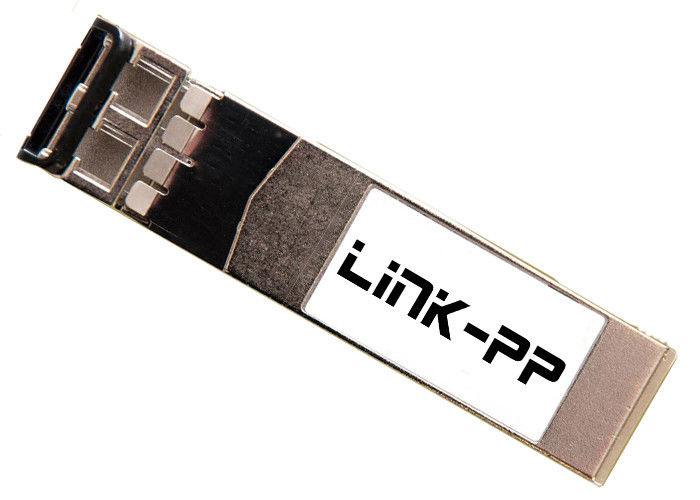

Model Number: AFBR-57D5APZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-57D5APZ |
Data Rate: |
8.5Gbps |
Wavelength: |
850nm |
Maximun Distance: |
- |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpose |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
Specifications: |
AFBR-57D5APZ |
Data Rate: |
8.5Gbps |
Wavelength: |
850nm |
Maximun Distance: |
- |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpose |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
| Specifications: | AFBR-57D5APZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFP |
| Product Name: | SFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
8.5 Gbps |
| Wavelength: | 850nm |
| Maximun Distance: | - |
| Fiber Type: | Singlemode Glass |
| Emitter: | DWDM EML |
| Voltage-Supply: | 3.3V |
| Applications: | General Purpose |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
|
Feature Description:
|
● Compliant to Restriction on Hazardous Substances (RoHS) directive
● Rate Select not required
● Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
● Real time monitoring of: – Transmitted optical power – Received optical power – Laser bias current – Temperature – Supply voltage
● SFP Plus Mechanical Applications
● Wide temperature and supply voltage operation (-10°C to 85°C) (3.3 V ± 10%)
● Transceiver specifications per SFP (SFF-8074i) MultiSource Agreement and SFF-8472 (revision 10.0)
– 8.5 GBd Fibre Channel operation for FC-PI-4 800-M5-SN-S, 800-M6-SN-S and 800-M5E-SN-I
– 4.25 GBd Fibre Channel operation for FC-PI 400-M5-SN-I , 400-M6-SN-I and 400 M5E-SN-I
– 2.125 GBd Fibre Channel operation for FC-PI 200-M5-SN-I , 200-M6-SN-I and 200 M5E-SN-I
● Link lengths at 8.5 GBd: 21m with 62.5um OM1, 50m with 50um OM2, 150m with 50um OM3
● Link lengths at 4.25 GBd: 70m with 62.5um OM1, 150m with 50um OM2, 380m with 50um OM3
● Link lengths at 2.125 GBd: 150m with 62.5um OM1, 300m with 50um OM2, 500m with 50um OM3
● LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
● 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source technology
● IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
● Enhanced EMI performance for high port density applications
|
Description:
|
● AFBR-57D7APZ optical transceiver supports high-speed serial links over multimode optical fiber at signaling rates up to 8.5 GBd. Compliant with Small Form Pluggable (SFP) Multi Source Agreement (MSA) mechanical and electrical specifications for LC Duplex transceivers, ANSI Fibre Channel for FC-PI-4 and FC-PI-2 for gigabit applications. The part is electrically interoperable with SFP conformant devices. ● The AFBR-57D7APZ is a multi-rate 850nm SFP which ensures compliance to 8.5/4.25/2.125 GBd Fibre Channel specifications without the need for Rate Select. The AFBR- 57D7APZ will ignore both Rate Select pin and control bit inputs (ie. no connect inside the SFP). This simplifies Fibre Channel host auto-negotiation algorithms, layout and software.
