Home > products > Optical Transceivers > AFBR-57F5PZ SFP Optical Module with Digital Diagnostic for Fibre Channel

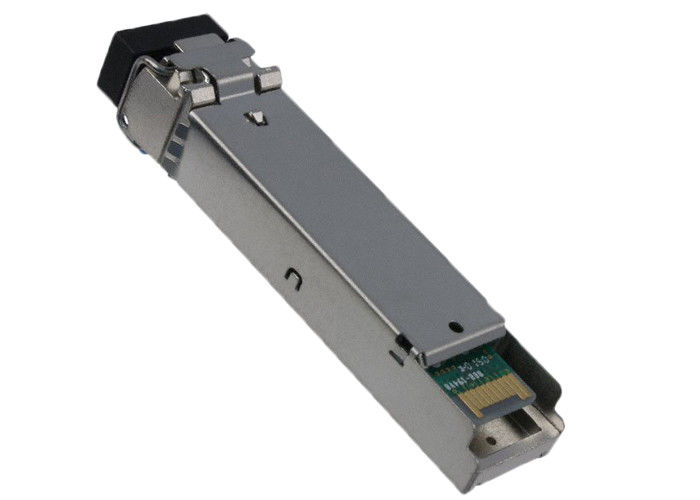

AFBR-57F5PZ SFP Optical Module with Digital Diagnostic for Fibre Channel

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Model Number: AFBR-57F5PZ

Payment & Shipping Terms

Minimum Order Quantity: 10/100/25K

Price: $0.11-$35

Packaging Details: 20/Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 350K/Month

Get Best Price
Highlight:

sfp optical module

,

fiber optic transceiver

Specifications:
AFBR-57F5PZ
Data Rate:
8.5,4.25,2.125GBd
Wavelength:
850nm
Maximun Distance:
100m
Fiber Type:
Multimode Glass
Emitter:
VCSEL
Voltage:
3.3V
Applications:
Fibre Channel Links
Connector:
LC Duplex
Mounting:
Pluggable,SFP
Environment:
Lead Free / RoHS Compliant
MSL:
1 (Unlimited)
Specifications:
AFBR-57F5PZ
Data Rate:
8.5,4.25,2.125GBd
Wavelength:
850nm
Maximun Distance:
100m
Fiber Type:
Multimode Glass
Emitter:
VCSEL
Voltage:
3.3V
Applications:
Fibre Channel Links
Connector:
LC Duplex
Mounting:
Pluggable,SFP
Environment:
Lead Free / RoHS Compliant
MSL:
1 (Unlimited)
AFBR-57F5PZ SFP Optical Module with Digital Diagnostic for Fibre Channel

AFBR-57F5PZ SFP Optical Module with Digital Diagnostic for Fibre Channel

Specifications: AFBR-57F5PZ
LINK-PP Part Number: LPXXXXXX
Product Class: Fiber Optics
Product Family: Optical Transceivers
Product Series: SFP
Product Name: SFP Optical Transceivers
Status Available: Active
RoHS: RoHS-6 Compliance



Specifications:



Data Rate:



125 MBd

Wavelength: 850nm
Maximun Distance: 100m
Fiber Type: Multimode Glass
Emitter: VCSEL
Voltage-Supply: 3.3V
Applications: Fibre Channel Links
Connector Type: LC Duplex
Mounting Type: Pluggable,SFP
Lead Free Status / RoHS Status: Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL): 1(Unlimited)



Feature Description:



● Compliant to Restriction on Hazardous Substances Compliant to Restriction on Hazardous Substances (RoHS) directive Compliant to Restriction on Hazardous Substances (RoHS) directive
● Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
● Real time monitoring of:
Transmitted optical power
Received optical power
Laser bias current
Temperature
Supply voltage
SFP Plus Mechanical Applications
Wide temperature and supply voltage operation (-0°C to 70°C) (3.3 V ± 5%)
Transceiver specifications per SFP (SFF-8074i) Multi-Source Agreement and SFF-8472 (revision 10.0)
14.025GBd Fibre Channel operation for FC-PI-5 1600 M5E-SN-I, FC-PI-5 1600-M5E-SN-I, FC-PI-5 1600 M5F-SN-I
8.5 GBd Fibre Channel operation for FC-PI-4 800-M5-SN-S, 800-M6-SN-S and 800-M5E-SN-I
4.25 GBd Fibre Channel operation for FC-PI400-M5-SN-I , 400-M6-SN-I and 400 M5E-SN-I
● Link lengths at 14.025 GBd: 125m with 50µm OM4, 100M with 50µm OM3, 35m with 50µm OM2, 15m with 62.5µm OM1
● Link lengths at 8.5 GBd: 21m with 62.5µm OM1, 50m with 50µm OM2, 150m with 50µm OM3
● Link lengths at 4.25 GBd: 70m with 62.5µm OM1, 150m with 50µm OM2, 380m with 50µm OM3
● Link lengths at 2.125 GBd: 150m with 62.5µm OM1, 300m with 50µm OM2, 500m with 50µm OM3
● LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
● 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source technology
● IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
● Enhanced EMI performance for high port density applications
