Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-57J7APZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-57J7APZ |
Data Rate: |
1.288 ~ 7.3728 Gb/s |
Wavelength: |
850nm |
Maximun Distance: |
125m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Wireless Base Station Receiver |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
Specifications: |
AFBR-57J7APZ |
Data Rate: |
1.288 ~ 7.3728 Gb/s |
Wavelength: |
850nm |
Maximun Distance: |
125m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Wireless Base Station Receiver |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
| Specifications: | AFBR-57J7APZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFP |

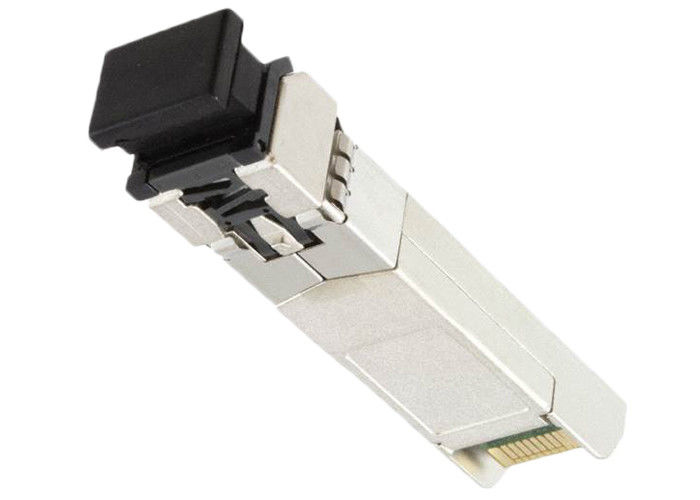

| Product Name: | SFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
1.288 ~ 7.3728Gb/s |
| Wavelength: | 850nm |
| Maximun Distance: | 125m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL |
| Voltage-Supply: | 3.3V |
| Applications: | Wireless Base Station Receiver |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
|
Feature Description:
|
● Fully RoHS Compliant
● Diagnostic Features Per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
● Real time monitors of:
Transmitted Optical Power
Received Optical Power
Laser Bias Current
Temperature
Supply Voltage
● Industrial Temperature and Supply Voltage Operation (-40°C to 85°C) (3.3V ± 10%)
● Transceiver Specifications per SFP (INF-8074) and SFF-8472 (revision 9.6)
● Up to 300m with 50μm OM3 at 3.7 Gb/s
● Up to 400m with 50μm OM3 at 3.072 Gb/s
● Up to 500m with 50μm OM3 at 2.457 Gb/s
● LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
● 850nm Vertical Cavity Surface Emitting Laser (VCSEL) Source Technology
● IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
● Compatible with Fibre Channel and Gigabit Ethernet applications
|
Application:
|
Wireless and cellular base station system interconnect
- OBSAI rates 6.144 Gb/s, 3.072 Gb/s, 1.536 Gb/s
- CPRI rates 7.3728 Gb/s, 4.9152 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s
|
Related Product:
|
● AFBR-57J5APZ: 850nm +3.3V LC SFP for CPRI/OBSAI Applications
● AFCT-57J5APZ: 1310nm +3.3V LC SFP for CPRI/OBSAI Applications
● AFCT-57J5ATPZ: 1310nm +3.3V LC SFP for CPRI/OBSAI Applications
● AFBR-57D7APZ: 850nm +3.3V LC SFP for 8.5/4.25/2.125 GBd Fibre Channel
● AFCT-57D5ATPZ: 1310nm +3.3V LC SFP for 8.5/4.25/2.125 GBd Fibre Channel
● AFCT-57J7ATPZ: 1310nm +3.3V LC SFP for CPRI/OBSAI Applications
