Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-57R5AEZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-57R5AEZ |
Data Rate: |
4.25 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
550m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
3 (168 Hours) |
Specifications: |
AFBR-57R5AEZ |
Data Rate: |
4.25 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
550m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
3 (168 Hours) |
| Specifications: | AFBR-57R5AEZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFP |

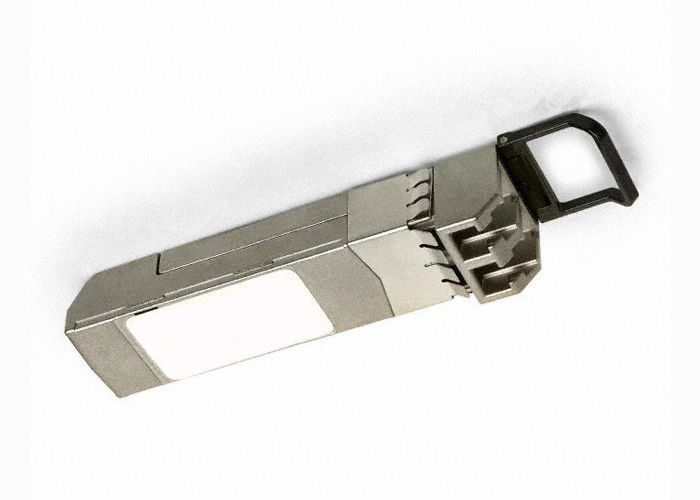

| Product Name: | SFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
4.25 Gbps |
| Wavelength: | 850nm |
| Maximun Distance: | 550m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL |
| Voltage-Supply: | 3.3V |
| Applications: | Ethernet |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 3(168 Hours) |
|
Feature Description:
|
● Fully RoHS Compliant
● Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
● Real time monitoring of:
– Transmitted optical power
– Received optical power
– Laser bias current
– Temperature
– Supply voltage
● Wide temperature and supply voltage operation (-10°C to 85°C) (3.3 V ± 10%)
● Transceiver specifications per SFP (SFF-8074i) Multi-Source Agree-ment and SFF-8472 (revision 9.3)
– 4.25 GBd Fibre Channel operation for FC-PI 400-M5-SN-I and 400-M6-SN-I
– 2.125 GBd Fibre Channel operation for FC-PI 200-M5-SN-I and 200-M6-SN-I
– 1.0625 GBd Fibre Channel operation for FC-PI 100-M5-SN-I and 100-M6-SN-I
● Link lengths at 4.25 GBd:
– 150 m with 50 μm MMF, 70 m with 62.5 μm MMF
● Link lengths at 2.125 GBd:
– 300 m with 50 μm MMF, 150 m with 62.5 μm MMF
● Link lengths at 1.0625 GBd:
– 500 m with 50 μm MMF, 300 m with 62.5 μm MMF
● LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
● 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source technology
● IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
● Compatible with Gigabit Ethernet
● Enhanced EMI performance for high port density applications
|
Applications:
|
● Fibre channel systems
– Director class switches
– Fabric switches – HBA cards
● Disk and tape drive arrays
