Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

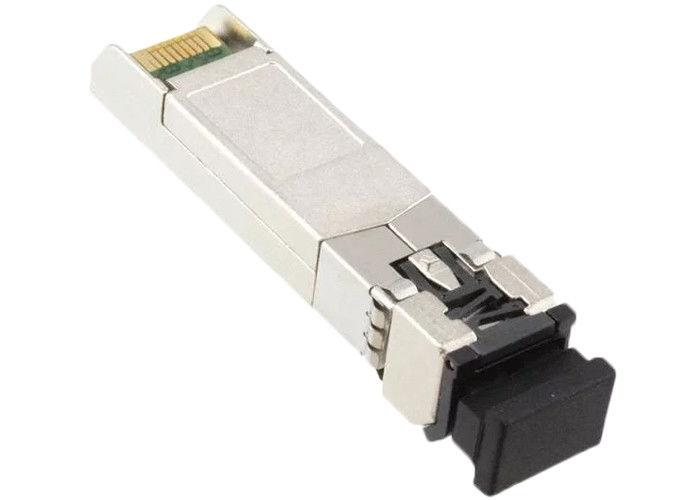

Model Number: AFBR-57R6APZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-57R6APZ |
Data Rate: |
4.25 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
550m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
Specifications: |
AFBR-57R6APZ |
Data Rate: |
4.25 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
550m |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Ethernet |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
| Specifications: | AFBR-57R6AEZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFP |
| Product Name: | SFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
4.25 Gbps |
| Wavelength: | 850nm |
| Maximun Distance: | 550m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL |
| Voltage-Supply: | 3.3V |
| Applications: | Ethernet |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
|
Feature Description:
|
● Fully RoHS compliant
● Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
● Real time monitoring of:
● Transmitted optical power
● Received optical power
● Laser bias current
● Temperature
● Supply voltage
● Rate select functionality per SFF 8079 (revision 1.7)
● Wide temperature and supply voltage operation (-10°C to 85°C) (3.3 V ± 10%)
● Transceiver specifications per SFP (SFF-8074i) Multi-Source Agreement and SFF-8472 (revision 9.3)
● 4.25 GBd Fibre Channel operation for FC-PI 400-M5-SN-I and 400-M6-SN-I
● 2.125 GBd Fibre Channel operation for FC-PI 200-M5-SN-I and 200-M6-SN-I
● 1.0625 GBd Fibre Channel operation for FC-PI 100-M5-SN-I and 100-M6-SN-I
● 1.25 GBd operation for IEEE 802.3 Gigabit Ethernet 1000Base-SX
● Link lengths at 4.25 GBd:
● 150 m with 50 μm MMF, 70 m with 62.5 μm MMF
● Link lengths at 2.125 GBd:
● 300 m with 50 μm MMF, 150 m with 62.5 μm MMF
● Link lengths at 1.0625 GBd:
● 500 m with 50 μm MMF, 300 m with 62.5 μm MMF
● Link lengths at 1.25 GBd:
● 2 to 550 m with 50 μm MMF, 2 to 275 m with 62.5 μm MMF
● LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
● 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source technology
● IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
● Compliant with Gigabit Ethernet
|
Installation:
|
● The AFBR-57R6APZ can be installed in any SFF-8074i compliant Small Form Pluggable (SFP) port regardless of host equipment operating status.
● The AFBR-57R6APZ is hot-pluggable, allowing the module to be installed while the host system is operating and on-line. Upon insertion, the transceiver housing makes initial contact with the host board SFP cage, mitigating potential damage due to Electro-Static Discharge (ESD).
