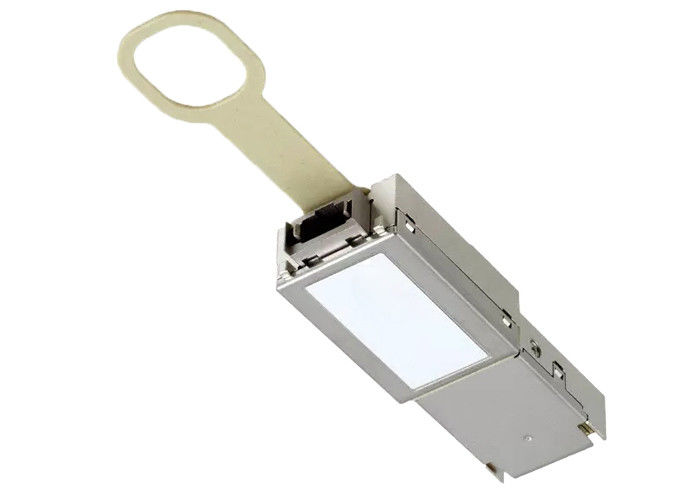

AFBR-83PDZ CXP Transceiver CXP Pluggable , Parallel Fiber-Optics Module

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Model Number: AFBR-83PDZ

Payment & Shipping Terms

Minimum Order Quantity: 10/100/25K

Price: $0.11-$35

Packaging Details: 20/Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 350K/Month

Get Best Price
Highlight:

fiber sfp module

,

fiber optic transceiver

Specifications:
AFBR-83PDZ
Data Rate:
10.3125 GBd
Wavelength:
850nm
Maximun Distance:
100m
Fiber Type:
Multimode Glass
Emitter:
VCSEL Array
Voltage:
3.3V
Applications:
Telecom/Datacom Systems
Connector:
MTP (MPO)
Mounting:
Pluggable,CXP
Environment:
Lead Free / RoHS Compliant
MSL:
1 (Unlimited)
Specifications:
AFBR-83PDZ
Data Rate:
10.3125 GBd
Wavelength:
850nm
Maximun Distance:
100m
Fiber Type:
Multimode Glass
Emitter:
VCSEL Array
Voltage:
3.3V
Applications:
Telecom/Datacom Systems
Connector:
MTP (MPO)
Mounting:
Pluggable,CXP
Environment:
Lead Free / RoHS Compliant
MSL:
1 (Unlimited)
AFBR-83PDZ CXP Transceiver CXP Pluggable , Parallel Fiber-Optics Module
AFBR-83PDZ CXP Transceiver CXP Pluggable, Parallel Fiber-Optics Module
Specifications: AFBR-83PDZ
LINK-PP Part Number: LPXXXXXX
Product Class: Fiber Optics
Product Family: Optical Transceivers
Product Series: CXP
Product Name: CXP Optical Transceivers
Status Available: Active
RoHS: RoHS-6 Compliance



Specifications:



Data Rate:



10.3125 GBd

Wavelength: 850nm
Maximun Distance: 100m
Fiber Type: Multimode Glass
Emitter: VCSEL Array
Voltage-Supply: 3.3V
Applications: Telecom/Datacom Systems
Connector Type: MTP(MPO)
Mounting Type: Pluggable,CXP
Operating Temperature Range: 0ºC~70ºC
Lead Free Status / RoHS Status: Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL): 1(Unlimited)



Feature Description:



● Compliant to SFF-8642: Mini Multilane Series: Shielded Integrated Connector, and IBTA Annex A6 CXP Interface Specification
● Each of the twelve channels is compliant on a per lane electrical and optical specification basis with the IEEE 802.3ba 100GbE (100 GBASE-SR10 and CPPI) specifications, and supporting InfiniBand QDR/DDR/SDR application
● Multi-rate capable from 1 Gbps to 10.5 Gbps
● High Channel Capacity: >120 Gbps per module, bidirectional, with twelve independent Transmitters and Receivers each
● Operates at 10.3125 Gbps per channel with 64b/66b encoded data for 100GbE application and at 10 Gbps with 8b/10b encoded data for IB-QDR application
● Hot Pluggable
● Links up to 100 m using OM3 fiber and 150 m using OM4 fiber
● 0 to 70° C case temperature operating range
● 3.3 V power supply only
● Low power dissipation of < 3 W
● Proven High Reliability 850 nm technology: Avago VCSEL array transmitter and Avago PIN array receiver
● Two Wire Serial (TWS) interface with maskable interrupt for expanded functionality including:
Individual channel functions: channel/output disable, squelch disable, and lane polarity inversion
Diagnostic Monitoring functions: module temperature and supply voltages, per channel laser current and laser power, and input receiver power
Status per channel: Tx fault, electrical (transmitter) and optical (receiver) LOS, and alarm flags
● Utilizes a standard 24 lane optical fiber with MTP (MPO) optical connector for high density and thin, light-weight cable management



Applications​:

● 100 GbE and IB-QDR / IB-DDR / IB-SDR interconnects

● Data Aggregation, Backplane and Proprietary Protocol and Density Applications

● Datacom/Telecom switch & router connections
