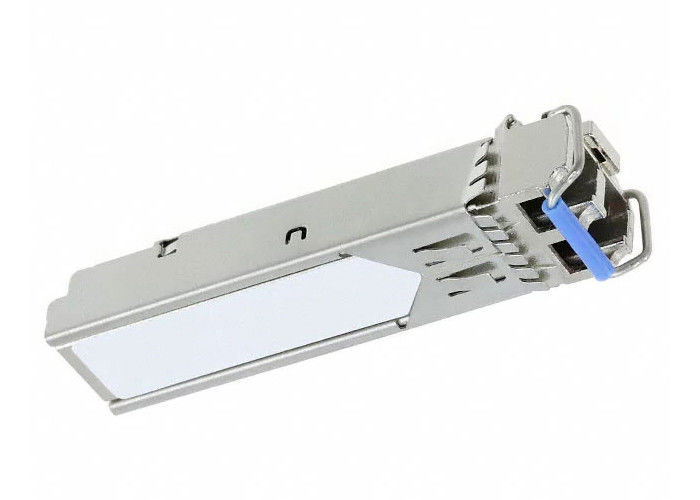

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFCT-57J5APZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFCT-57J5APZ |
Data Rate: |
3.072 Gbps |
Wavelength: |
1310nm |
Maximun Distance: |
- |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpos |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
3(168 Hours) |
Specifications: |
AFCT-57J5APZ |
Data Rate: |
3.072 Gbps |
Wavelength: |
1310nm |
Maximun Distance: |
- |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpos |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
3(168 Hours) |
| Specifications: | AFCT-57J5APZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFP |
| Product Name: | SFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
3.072 Gbps |
| Wavelength: | 1310nm |
| Maximun Distance: | - |
| Fiber Type: | Singlemode Glass |
| Emitter: | DWDM EML |
| Voltage-Supply: | 3.3V |
| Applications: | General Purpos |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 3(168 Hours) |
|
Feature Description:
|
• Fully RoHS Compliant
• Diagnostic Features Per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
• Real time monitors of:
− Transmitted Optical Power
− Received Optical Power
− Laser Bias Current
− Temperature
− Supply Voltage
• Industrial Temperature and Supply Voltage Operation(-40°C to 85°C) (3.3V ± 10%)
• Transceiver Specifi cations per SFP (INF-8074) and SFF-8472 (revision 9.6)
• Up to 7km with 9um fi ber for 3.072 Gb/s
• Up to 8km with 9um fi ber for 2.4576 Gb/s
• LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
• 1310nm Fabry Perot Laser (FP) Source Technology
• IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
• Compatible with Fibre Channel and Gigabit Ethernet applications
|
Feature Description:
|
• Wireless and cellular base station system interconnect:
- OBSAI rates: 3.072 Gb/s, 1.536 Gb/s, 0.768 Gb/s
- CPRI rates: 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
