Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFCT-57R5ATPZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFCT-57R5ATPZ |
Data Rate: |
4.25 Gbps |
Wavelength: |
1310nm |
Maximun Distance: |
10000m |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpose |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
Specifications: |
AFCT-57R5ATPZ |
Data Rate: |
4.25 Gbps |
Wavelength: |
1310nm |
Maximun Distance: |
10000m |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpose |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
| Specifications: | AFCT-57R5ATPZ |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFP |
| Product Name: | SFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
4.25 Gbps |
| Wavelength: | 1310nm |
| Maximun Distance: | 10000m |
| Fiber Type: | Singlemode Glass |
| Emitter: | DWDM EML |
| Voltage-Supply: | 3.3V |
| Applications: | General Purpose |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1 (Unlimited) |
|
Feature Description:
|
● Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
● Compliant to Restriction on Hazardous Substances(RoHS) directive
● Real time monitors of:
– Transmitted average optical power
– Received average optical power
– Laser bias current
– Temperature
– Supply voltage
● High performance 1310 nm Fabry-Perot (FP) laser
● Wide Temperature and Supply Voltage Operation (-10°C to 85°C) (3.3 V ± 10%)
● Transceiver specifi cations per SFP (SFF-8074i) MultiSource Agree ment and SFF-8472 (revision 9.3)
– 4.25 GBd Fibre Channel operation for FC-PI-2 400-SM-LC-M
– 2.125 GBd Fibre Channel operation for FC-PI-2 200-SM-LC-M
– 1.0625 GBd Fibre Channel operation for FC-PI-2 100-SM-LC-M
● Link lengths at 4.25 GBd: 4 km with SMF
● Link lengths at 2.125 GBd: 10 km with SMF
● Link lengths at 1.0625 GBd: 10 km with SMF
● LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
● IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
● Supports Tellabs SDF Special Signal at 3.08 Gb/s
|
Description:
|

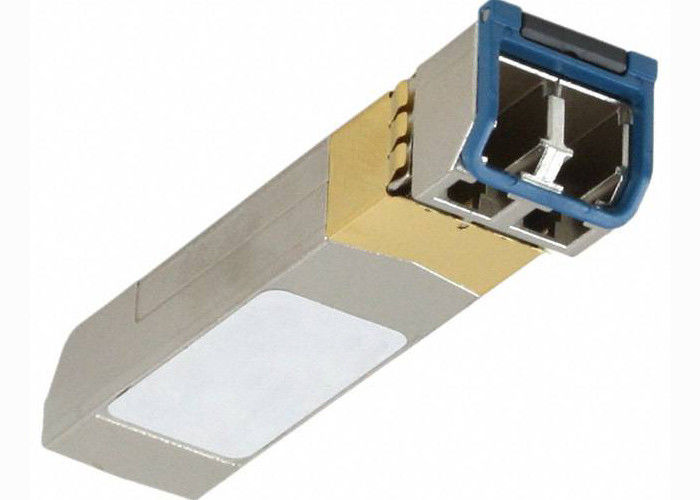

● The AFCT-57R5ATPZ optical transceiver supports highspeed serial links over singlemode optical fi ber at signaling rates up to 4.25 Gb/s. Compliant with Small Form Pluggable (SFP) Multi Source Agreement (MSA) mechanical and electrical specifi cations, ANSI Fibre Channel FC-PI-3 and compatible with IEEE 802.3 for gigabit applications.
● As an enhancement to the conventional SFP interface defi ned in SFF-8074i, the AFCT-57R5ATPZ is compliant to SFF-8472 (digital diagnostic interface for SFP). Using the 2-wire serial interface defi ned in the SFP MSA, the AFCT-57R5ATPZ provides real time temperature, supply voltage, laser bias current, laser average output power and received average input power. This information is in addition to the conventional SFP data. The digital diagnostic interface also adds the ability to disable the transmitter (TX_DISABLE), monitor for Transmitter Faults (TX_FAULT), monitor for Receiver Loss of Signal (RX_LOS).
|
Applications:
|
● Fibre channel systems
– Director class switches
– Fabric switches
– HBA cards
● Disk and tape drive arrays
