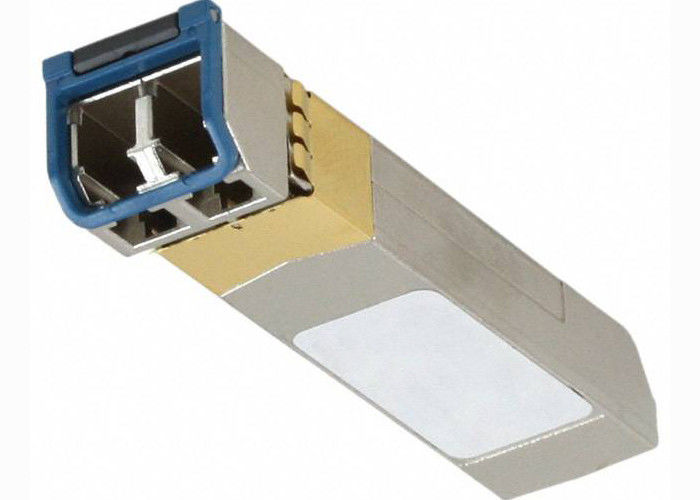

AFCT-57V6ANSZ SFP Optical Module 1.25GBd Ethernet at Extended Link Lengths

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Model Number: AFCT-57V6ANSZ

Payment & Shipping Terms

Minimum Order Quantity: 10/100/25K

Price: $0.11-$35

Packaging Details: 20/Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 350K/Month

Get Best Price
Highlight:

sfp optical module

,

fiber optic transceiver

Specifications:
AFCT-57V6ANSZ
Data Rate:
1.25 Gbps
Wavelength:
1550nm
Maximun Distance:
40000m
Fiber Type:
Singlemode Glass
Emitter:
DWDM EML
Voltage:
3.3V
Applications:
Ethernet
Connector:
LC Duplex
Mounting:
Pluggable,SFP
Environment:
Lead Free / RoHS Compliant
MSL:
1 (Unlimited)
Specifications:
AFCT-57V6ANSZ
Data Rate:
1.25 Gbps
Wavelength:
1550nm
Maximun Distance:
40000m
Fiber Type:
Singlemode Glass
Emitter:
DWDM EML
Voltage:
3.3V
Applications:
Ethernet
Connector:
LC Duplex
Mounting:
Pluggable,SFP
Environment:
Lead Free / RoHS Compliant
MSL:
1 (Unlimited)
AFCT-57V6ANSZ SFP Optical Module 1.25GBd Ethernet at Extended Link Lengths

AFCT-57V6ANSZ SFP Optical Module 1.25GBd Ethernet at Extended Link Lengths

Specifications: AFCT-57V6ANSZ
Product Class: Fiber Optics
Product Family: Optical Transceivers
Product Series: SFP
Product Name: SFP Optical Transceivers
Status Available: Active
RoHS: RoHS-6 Compliance



Specifications:



Data Rate:



 1.25 Gbps

Wavelength: 1550nm
Maximun Distance: 40000m
Fiber Type: Singlemode Glass
Emitter: DWDM EML
Voltage-Supply: 3.3V
Applications: Ethernet
Connector Type: LC Duplex
Mounting Type: Pluggable,SFP
Lead Free Status / RoHS Status: Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL): 1 (Unlimited)



Feature Description:



• Gigabit Ethernet transceiver
• RoHS Compliant
• IEEE 802.3z, 1000BASE-ZX
• Extended transmission distance up to 40 km
• Compliant with SFP Multi Source Agreement (MSA)
• Duplex-LC optical interface
• 1550 nm DFB-LD
• Serial ID
• Digital Diagnostic Monitoring interface
• Bail delatch for easy removal from cage
• Available in industrial temperature range(-40 to +85°C)
• Immune to ESD, RF fields, and Vcc noise
• Designed for very low RF emissions
• Class 1 laser safety
• AC-coupled differential serial I/O interface
• Single +3.3 Volt supply operation
• Low power dissipation



Description:



•The AFCT-57V6NSZ transceiver is a specially customised low-cost and hot-pluggable SFP MSA-compliant optical interconnect module for Gigabit Ethernet applications at transmission distances up to 40km.

• The AFCT-57V6NSZ implements the serial portion of the physical layer, and supports the features shown below The AFCT-57V6NSZ features differential serial I/O interface lines that are AC-coupled signals. Avago’s design of the long wavelength SFP module uses a 1550 nm distributed feedback (DFB) laser diode (LD) and takes advantage of an integrated preamplifier/photo-detector. The AFCT-57V6NSZ also contains transmitter, receiver and control electronics.

• Singlemode optical fiber, with LC connectors, is recommended as the communication media. The AFCT- 57V6NSZ has a digital diagnostic monitoring (DDM) function in accordance with SFF-8472 which allows monitoring operating temperature, supply voltage, laser bias current, transmitter optical output power and optical received power in real time via a serial-ID interface.

• On the following page, Table1 lists the general specifications for the AFCT-57V6NSZ SFP.

•  Figure 1 shows a simplified block diagram of the AFCT- 57V6NSZ electronics.



Applications:



• Ethernet switches

• Multi-service switches and routers

• aggregation and wireless infrastructure

• Switched backplane applications

• High Speed Interface for server farms

• Metro access switch GbE connections
