Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFCT-5765NLZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFCT-5765NLZ |
Data Rate: |
155Mbps |
Wavelength: |
1300nm |
Maximun Distance: |
2000m |
Fiber Type: |
Singlemode Glass |
Emitter: |
FP Laser |
Voltage: |
3.1V~3.5V |
Applications: |
General Purpose |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
3 (168 Hours) |
Specifications: |
AFCT-5765NLZ |
Data Rate: |
155Mbps |
Wavelength: |
1300nm |
Maximun Distance: |
2000m |
Fiber Type: |
Singlemode Glass |
Emitter: |
FP Laser |
Voltage: |
3.1V~3.5V |
Applications: |
General Purpose |
Connector: |
LC Duplex |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
3 (168 Hours) |
| Specifications: | AFCT-5765NLZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFF |

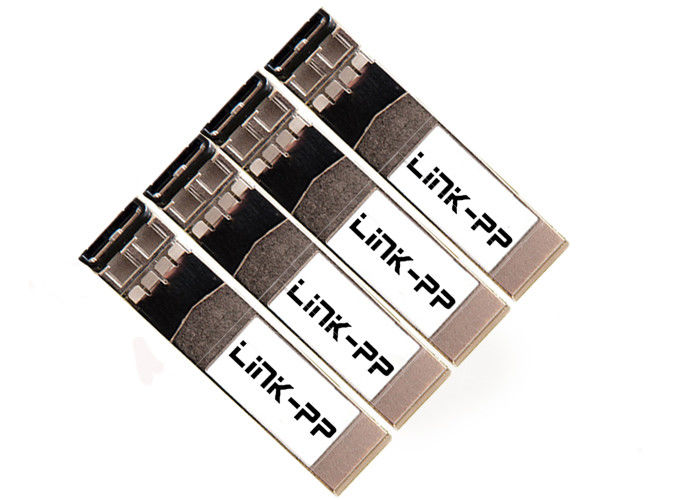

| Product Name: | SFF Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
155Mbps |
| Wavelength: | 1300nm |
| Maximun Distance: | 2000m |
| Fiber Type: | Singlemode Glass |
| Emitter: | FP Laser |
| Voltage-Supply: | 3.1V~3.5V |
| Applications: | General Purpose |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 3(168 Hours) |
|
Feature Description:
|
● ROHS compliant
● Optional Digital Diagnostic Monitoring available
- AFCT-5760Z family: without DMI
- AFCT-5765Z fami E162ly: with DMI
● Per SFF-8472, diagnostic features on AFCT-5765Z family enable Diagnostic Monitoring Interface for optical transceivers with real-time monitoring of:
- Transmitted optical power
- Received optical power
- Laser bias current
- Temperature
- Supply voltage
● Compliant with SFF-8074i SFP transceiver specifi cation
● Compliant with ITU-T G957 STM-1 L1.1 (40km) Optical Interface
● Compliant with Telcordia GR253 OC3 LR-1 (40km)Optical Interface
● Class 1 CDRH/IEC 825 eye safety compliant
● Operating case temperature range:
–10℃ to 85℃(Extended)
–40℃ to 85℃(Industrial)
● Multitrate operation from 125 Mb/s to 155 Mb/s
● LC duplex fiber connector
● Manufactured in an ISO 9001 compliant facility
