FTLX1471D3BNL SFP+ Optical Module 10Gb/s Extended Temperature 10km Single Mode

China FTLX1471D3BNL SFP+ Optical Module 10Gb/s Extended Temperature 10km Single Mode supplier

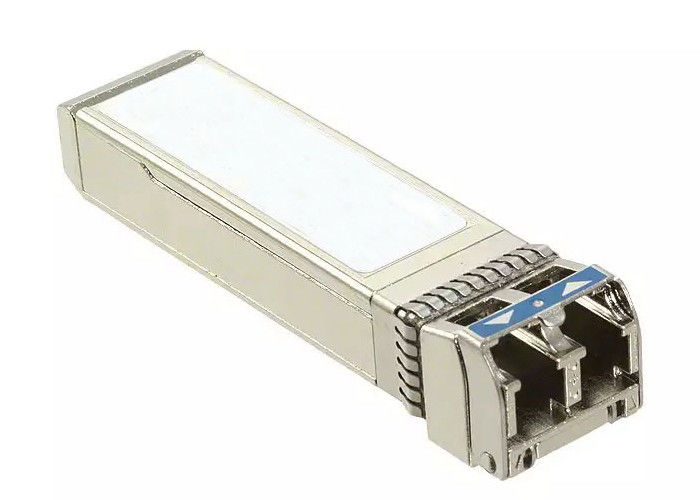

Large Image :  FTLX1471D3BNL SFP+ Optical Module 10Gb/s Extended Temperature 10km Single Mode

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: FTLX1471D3BNL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Supportive
Packaging Details: 10PCS/tray,100pcs/carton
Delivery Time: Stock or 2-3 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 420000K/Month
Contact Now
Detailed Product Description
Specifications: FTLX1471D3BNL Data Rate: 10.5 Gbps
Wavelength: 1310nm Maximun Distance: 10000m
Fiber Type: Singlemode Glass Emitter: DWDM EML
Voltage: 3.3V Applications: Ethernet
Connector: LC Duplex Mounting: Pluggable,SFP+
Environment: Lead Free / RoHS Compliant MSL: 1 (Unlimited)

FTLX1471D3BNL SFP+ Optical Module 10Gb/s Extended Temperature 10km Single Mode

Specifications: FTLX1471D3BNL
Product Class: Fiber Optics
Product Family: Optical Transceivers
Product Series: SFP+
Product Name: SFP+ Optical Transceivers
Status Available: Active
RoHS: RoHS-6 Compliance



Specifications:



Data Rate:



10.5 Gbps

Wavelength: 1310nm
Maximun Distance: 10000m
Fiber Type: Singlemode Glass
Emitter: DWDM EML
Voltage-Supply: 3.3V
Applications: Ethernet
Connector Type: LC Duplex
Mounting Type: Pluggable,SFP+
Lead Free Status / RoHS Status: Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL): 1 (Unlimited)



Feature Description:

• Hot-pluggable SFP+ footprint
• Supports 9.95 to 10.5Gb/s bit rates
• Power dissipation < 1W
• RoHS-6 compliant (lead-free)
• Extended temperature range -5°C to 85°C
• Single 3.3V power supply
• Maximum link length of 10km
• Uncooled 1310nm DFB laser
• Receiver limiting electrical interface
• Duplex LC connector
• Built-in digital diagnostic functions
