Product Details:
Payment & Shipping Terms:
|
| Part Number: | LP5012ANL | Ethernet: | 1000 Base -T |
|---|---|---|---|
| Manufacturer: | LINK-PP | Mounting Type: | Surface Mount |
| Samples: | Available | Archivi Disponibili: | PDF/3D/ISG/Stp/Step/Datasheet |
| High Light: | Dual Port Ethernet Transformers,Discrete Magnetic Transformers,1000 Base -T Magnetic Transformers |
||
Detailed Information:

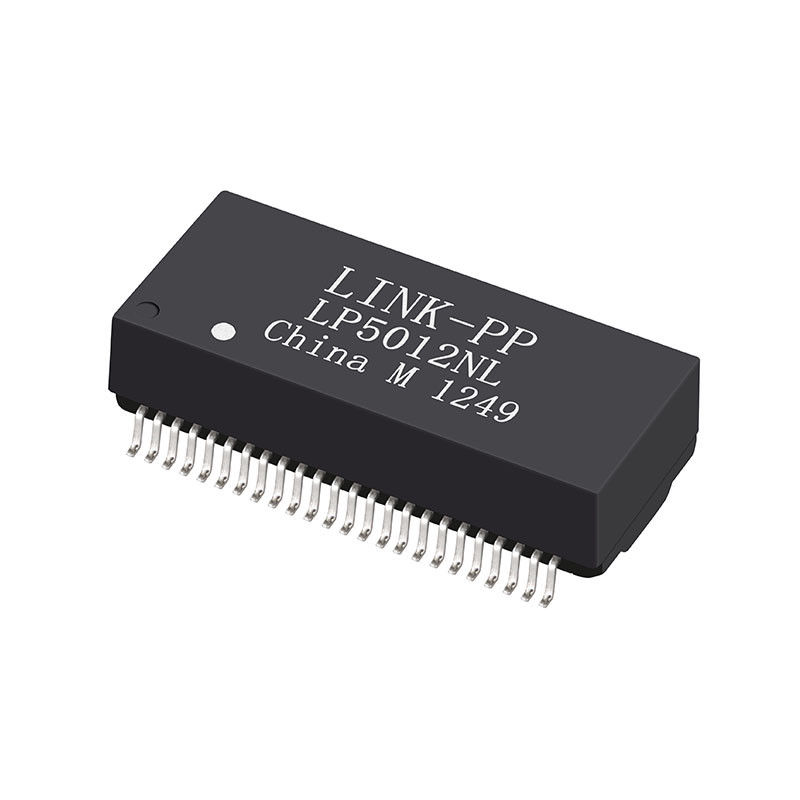

| Dual Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | LP5012NL |
| LINK-PP Part Number | LP5012ANL |
| Speed | 10/100BASE-T |
| Number of Ports | DUAL |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMD |
| Temperature | -40℃ TO +85℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 24 |
| Package Height (Inches) | 0.276 |
| Package Height (mm) | 7.00 |
| Package Length (Inches) | 1.102 |
| Package Length (mm) | 28.00 |
| Package Width (Inches) | 0.606 |
| Package Width (mm) | 15.40 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Contact Person: Factory Sales Team
Tel: 86-752-3322915
