Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TG57-0406N1RL | TG74-0406N1RL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification-A: |
TG57-0406N1RL |
Specification-B: |
TG74-0406N1RL |
Turns Ratio-A: |
1:1 & 1CT:1CT |
Turns Ratio-B: |
1:1 & 1:2CT |
LL-A: |
0.10 µH Max |
LL-B: |
0.10 µH Max |
PRI OCL: |
40 & 19 µH Min |
Temp Range: |
0 To +70°C |
Specification-A: |
TG57-0406N1RL |
Specification-B: |
TG74-0406N1RL |
Turns Ratio-A: |
1:1 & 1CT:1CT |
Turns Ratio-B: |
1:1 & 1:2CT |
LL-A: |
0.10 µH Max |
LL-B: |
0.10 µH Max |
PRI OCL: |
40 & 19 µH Min |
Temp Range: |
0 To +70°C |

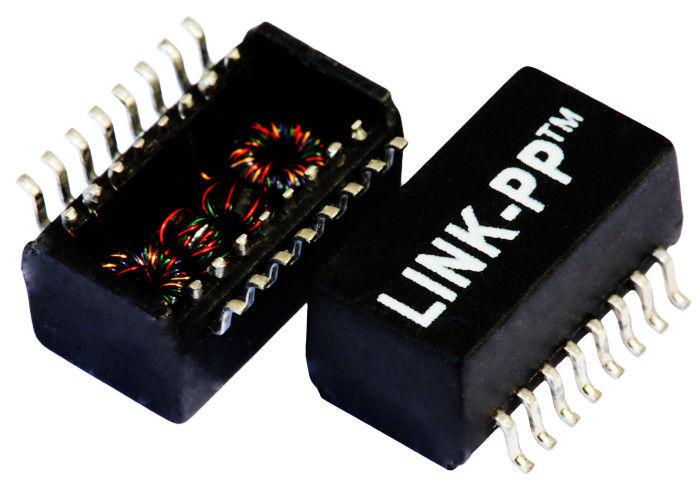

T3/DS3/E3/STS-1 Modules Dual Transformer Isolation, Surface Mounting.
Product Features
TG57-0406N1RL Equivalent Specifications
TG74-0406N1RL Pin To Pin Compatible
Standard series of SMD dual transformer Isolation Modules to meet the return loss requirements of
G.703 for T3, DS3, E3 and STS-1 applications.
Non-Standard designs are also available.
1500Vrms Hi-Pot
Patented Open Frame Construction
UL-E484635
Others Specifications
T1/E1 Line Interface Modules
| TD02-1205ALF | TD71-1205ALF | TD37-1205ALF | TG10-1205NSRL |
| TD04-1205ALF | TD72-1205ALF | TD38-1505ALF | TG15-1205NSRL |
| TD08-1205ALF | TG02-1205NSRL | TD70-1205ALF | TG23-1505NSRL |
| TD10-1205ALF | TG04-1205NSRL | TG42-1205NSRL | TG37-1205NSRL |
| TD15-1205ALF | TG08-1205NSRL | TG70-1205NSRL | TG38-1205NSRL |
| TG71-1205NSRL |
