Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 53TB-1222ANL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
53TB-1222ANL |
Updated PN: |
LPB81090NL |
Speed: |
10/100Base-Tx |
Number Of Ports: |
Single |
Application: |
Lan Ethernet(NoN PoE) |
Package: |
SMD |
PIN Number: |
16 |
Temperature: |
0 TO +70℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
53TB-1222ANL |
Updated PN: |
LPB81090NL |
Speed: |
10/100Base-Tx |
Number Of Ports: |
Single |
Application: |
Lan Ethernet(NoN PoE) |
Package: |
SMD |
PIN Number: |
16 |
Temperature: |
0 TO +70℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:

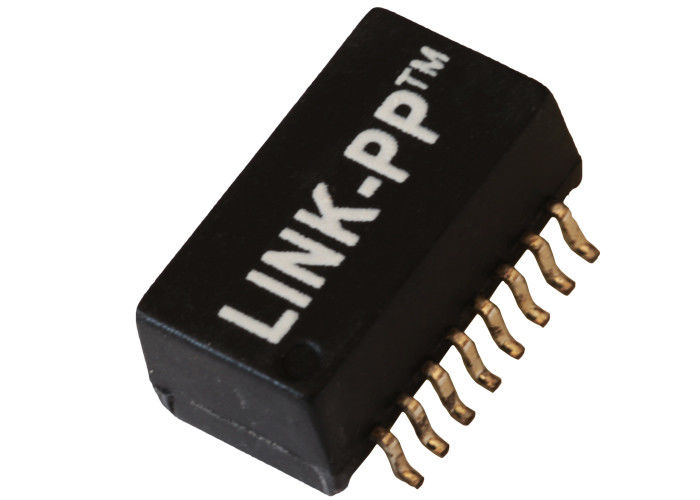

| 53TB-1222ANL | LPB81090NL 16pins SMT Transformer 1CT:2CT 1500Vrms | |
| Updated Part Number | LPB81090NL |
| Specification | 53TB-1222ANL |
| Speed | 10/100 Base-t |
| Number of Ports | DUAL |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMD |
| Temperature | -40℃ TO +85℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 2 |
| Package Height (Inches) | 0.244 |
| Package Height (mm) | 6.20 |
| Package Length (Inches) | 0.500 |
| Package Length (mm) | 12.70 |
| Package Width (Inches) | 0.366 |
| Package Width (mm) | 9.30 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
