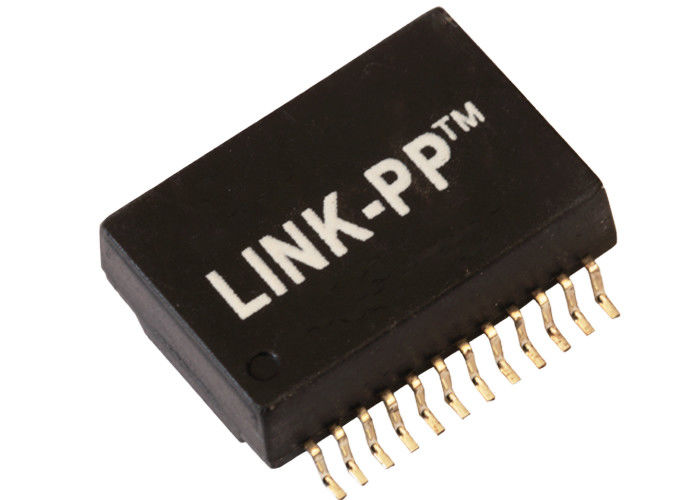

HY682405 / LP82478NLE Gigabit Ethernet Transformer with 100/1000Base-T Magnetic

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HY682405

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100base-t transformer

,

1000base-t magnetic module

Specification:
HY682405
Updated PN:
LP82478NLE
Speed:
10/100/1000Base-T
Number Of Ports:
Single
Application:
Lan Ethernet(NoN PoE)
Package:
SMD
PIN Number:
24
Temperature:
-0°C - + 70°C
Archivi Disponibil:
PDF/3D/ISG/Stp/Step/Datasheet
Specification:
HY682405
Updated PN:
LP82478NLE
Speed:
10/100/1000Base-T
Number Of Ports:
Single
Application:
Lan Ethernet(NoN PoE)
Package:
SMD
PIN Number:
24
Temperature:
-0°C - + 70°C
Archivi Disponibil:
PDF/3D/ISG/Stp/Step/Datasheet
HY682405 / LP82478NLE Gigabit Ethernet Transformer with 100/1000Base-T Magnetic

HY682405 | LP82478NLE Gigabit Ethernet Transformer For 100/1000Base-T Magnetic

HY682405 / LP82478NLE Gigabit Ethernet Transformer with 100/1000Base-T Magnetic 0

Detailed Information:

HY682405 | LP82478NLE Gigabit Ethernet Transformer For 100/1000Base-T Magnetic
LINK-PP Part Number LP82478NLE
Specification HY682405
Speed T1/CEPT/ISDN-PRI
Number of Ports Single / Dual
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature 0℃ TO +70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) 0.230
Package Height (mm) 5.84
Package Length (Inches) 1.125
Package Length (mm) 28.58
Package Width (Inches) 0.640
Package Width (mm) 16.26
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
