H1664NL 4x10/100Base-Tx Transformer 350 µH With 1500 V Isolation Voltage

China H1664NL 4x10/100Base-Tx Transformer 350 µH With 1500 V Isolation Voltage supplier
H1664NL 4x10/100Base-Tx Transformer 350 µH With 1500 V Isolation Voltage supplier H1664NL 4x10/100Base-Tx Transformer 350 µH With 1500 V Isolation Voltage supplier H1664NL 4x10/100Base-Tx Transformer 350 µH With 1500 V Isolation Voltage supplier

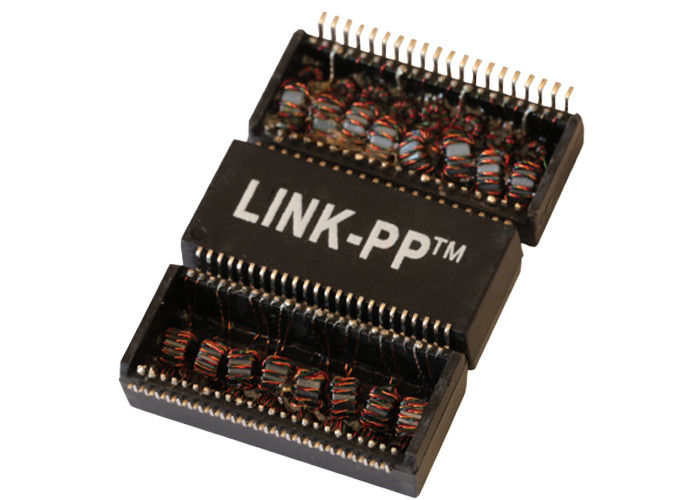

Large Image :  H1664NL 4x10/100Base-Tx Transformer 350 µH With 1500 V Isolation Voltage

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H1664NL

Payment & Shipping Terms:

Minimum Order Quantity: 350/1400
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: H1664NL P/N: LP44007NL
Measure: 28.45 Mmx12.19 Mmx5.71 Mm Mounting: SMD
Ethernet: 4x10/100Base-Tx Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

H1664NL | LP44007NL Quad Port 10/100 Transformer Ethernet Magnetic Module
  • PULSE TRANSFORMER FOR GENERAL PURPOSE APPLICATION(S)
  • Coil Number: Autotransformer
  •  Isolation Voltage:1500Vrms
  • Type: Surface Mounting
  • Coil Structure: Toroidal
  • 10/100 Base-T Four Port Transformer Modules
  • LP44007NL  Equivalent Specifications
  • Pulse H1664NL Cross PN

H1664NL 4x10/100Base-Tx Transformer 350 µH With 1500 V Isolation Voltage

SPECIFICATIONS



Mfr Package Description ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Transformer Type PULSE TRANSFORMER
Application GENERAL PURPOSE
Isolation Voltage 1500.0 V
Manufacturer Series H1664NL Equivalent
Mounting Feature SURFACE MOUNT
Number of Functions 2
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Physical Dimension L28.45XB12.19XH5.71 (mm)
Primary Inductance 350.0 µH
Turns Ratio (Np:Ns) 1:1
Height 5.71 mm
Length 28.45 mm
Width 12.19 mm
Additional Feature HEIGHT DIM INCLUDE TERMINALS ALSO
Equivalent part Sales LP44007NL Cross Compatible price to buy



H1664NL | LP44007NL Quad Port 10/100 Transformer Ethernet Magnetic Module
