LP82440NL Gigabit Ethernet Transformer 1000Base-T Magnetic Module , 24 PIN

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

LP82440NL Gigabit Ethernet Transformer 1000Base-T Magnetic Module , 24 PIN

China LP82440NL Gigabit Ethernet Transformer 1000Base-T Magnetic Module , 24 PIN supplier
LP82440NL Gigabit Ethernet Transformer 1000Base-T Magnetic Module , 24 PIN supplier LP82440NL Gigabit Ethernet Transformer 1000Base-T Magnetic Module , 24 PIN supplier

Large Image :  LP82440NL Gigabit Ethernet Transformer 1000Base-T Magnetic Module , 24 PIN

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP82440NL

Payment & Shipping Terms:

Minimum Order Quantity: 800/5600
Price: Supportive
Packaging Details: 800PCS/Reel,7Reels=5600PCS=35.5*35.5*35cm=9.5 KG/Carton
Delivery Time: Stock or 4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specification: LP82440NL Updated PN: LP82440NL
Speed: 10/100/1000Base-T Number Of Ports: Single
Application: Lan Ethernet(NoN PoE) Package: SMD
PIN Number: 24 Temperature: 0°C - 70°C
Archivi Disponibil: PDF/3D/ISG/Stp/Step/Datasheet

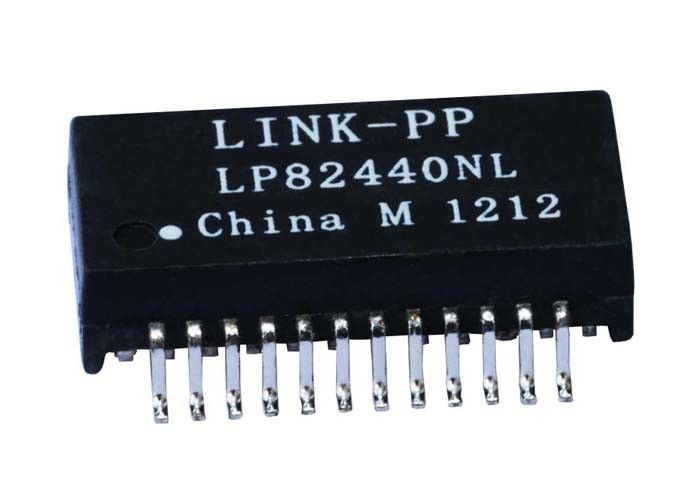

LP82440NL Gigabit Ethernet Transformer 1000Base-T Magnetic Module



Electrical Specifications @25℃
1.Turn Ratio(TX/RX):
Pri:Sec=1CT:1CT ±5%

2.Inductance OCL: 350uH Min
@100KHz/0.1V 8mA DC BLAS
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss:
1-30MHz:-18dB Min
40MHz:-14.4dB Min
50MHz:-13.1dB Min
60-80MHz:-12dB Min
5.Crosstalk:
30MHz:-45dB Min
60MHz:-40dB Min
100MHz:-35dB Min
6.DCMR:
30MHz:-40dB Min
60MHz:-35dB Min
100MHz:-30dB Min
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: 0℃~70℃

LP82440NL Gigabit Ethernet Transformer 1000Base-T Magnetic Module

NOTES
1.DESIGNED FOR GIGABIT TRANSCEIVERS
2.PEAK REFLOW TEMPERATURE RATING 260℃
3.MAGNETICS,DESIGNED FOR GIGABIT PHY USED
IN BACKPLANE
4.COMPLIANT WITH IEEE 802.3AB STANDARD



Detailed Information:



7490200143 | LP5084ANL Gigabit Ethernet Transformer 1000Base-T Magnetics
LINK-PP Part Number LP82440NL
Specification LP82440NL
Speed 1x10/100/1000Base-T
Number of Ports Single 1x1
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature 0℃ TO 70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
