7490100161A 10/100base-Tx Magnetic Transformer 1500Vrms with SMT Mounting

China 7490100161A 10/100base-Tx Magnetic Transformer 1500Vrms with SMT Mounting supplier
7490100161A 10/100base-Tx Magnetic Transformer 1500Vrms with SMT Mounting supplier 7490100161A 10/100base-Tx Magnetic Transformer 1500Vrms with SMT Mounting supplier 7490100161A 10/100base-Tx Magnetic Transformer 1500Vrms with SMT Mounting supplier

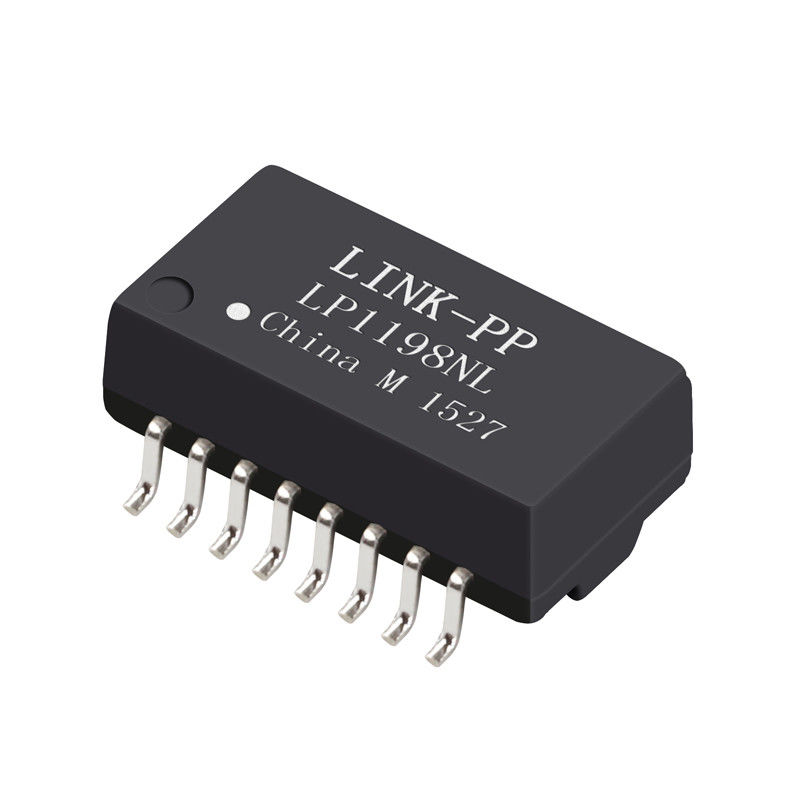

Large Image :  7490100161A 10/100base-Tx Magnetic Transformer 1500Vrms with SMT Mounting

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 7490100161A

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: 7490100161A Equivalent: LP1198NL
Turn Ratio: 1:1 Mounting: SMT
Ethernet: 1x10/100Base-Tx Dielectric: 1500Vrms
File: PDF/3D/ISG/Stp/Step/Datasheet

7490100161A 10/100base-Tx Magnetic Transformer 1500Vrms 1min
  • Equivalent to 7490100161A
  • l IEEE 802.3 Ethernet Compatible,10/100 Base-TX
  • Surface Mountable(Miniature size)
  • 10/100 Base-T Transformer Modules
  • LP1188NL Compatible of 7490100161A Equivalent Specifications
  • operating temperature:-40°C - +125°C
  • Hipot test: 1500Vrms 1min.
  • Compliant with IEEE 802.3u for 10/100Base-TX-Applications
  • Auto MDIX capable
Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP1198NL
WE Part Number 7490100161A
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature - 40 TO + 85
AutomDX YES
Comment SAME AS NL VERSION
Construction OPEN FRAME
Cores Per Port 4
Package Height (mm) 5.65
Package Length (mm) 12.8
Package Width (mm) 6.90
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
