High - Voltage Lan Isolation Transformer 10 / 100BT 1800V 12.7mm L x 9.52mm W x 5.8mm

China High - Voltage Lan Isolation Transformer 10 / 100BT 1800V  12.7mm L x 9.52mm W x 5.8mm supplier
High - Voltage Lan Isolation Transformer 10 / 100BT 1800V  12.7mm L x 9.52mm W x 5.8mm supplier High - Voltage Lan Isolation Transformer 10 / 100BT 1800V  12.7mm L x 9.52mm W x 5.8mm supplier

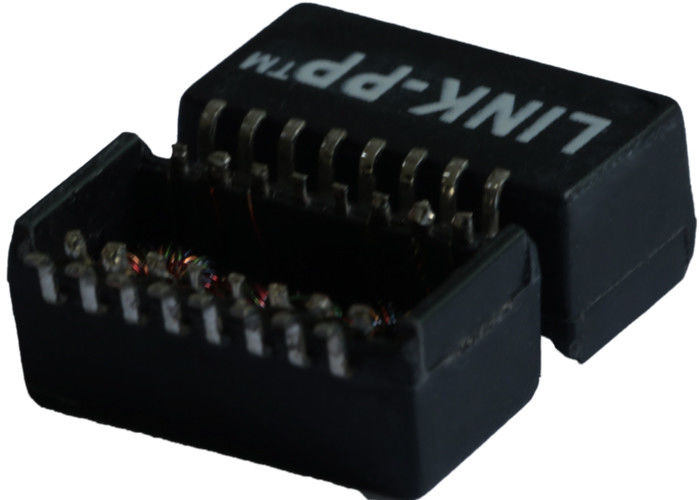

Large Image :  High - Voltage Lan Isolation Transformer 10 / 100BT 1800V 12.7mm L x 9.52mm W x 5.8mm

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 749012011

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: 749012011 Inductance: 350µH
Turns Ratio: 1 : 1 Mounting Type: Surface Mount
Dimension: 12.7mm L X 9.52mm W X 5.8mm Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

Lan High-Voltage, 10/100BT 1800V ,749012013 | 749012011 TRANSFORMER



Electrical Specifications @25℃
1.OCL: 350uH MIN
@100KHz,0.1Vrms,8mADC Bias
2.Turns Ratio:
TX=1CT∶1CT RX=1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB MAX
4.Return Loss(dB TYP):
30MHz:-20 60MHz:-14
80MHz:-11.5
5.Crosstalk(dB TYP):
30MHz:-45 60MHz:-40
100MHz:-35
6.DCMR(dB TYP):
30MHz:-42 50MHz:-37
100MHz:-33
7.Hipot: 1800Vrms MIN
8.Operating Temperature: -40℃~+85℃./  0℃~70℃.



Product Category: Transformers Audio & Signal
Manufacturer: LINK-PP Cross In China
RoHS:  Details
Termination Style: SMD/SMT
Frequency Range: 100 kHz to 100 MHz
Inductance: 350 uH
Primary Impedance: -
Secondary Impedance: -
Isolation Voltage: 1500 VAC
Operating Temperature Range: - 40 C to + 85 C
Number of Channels: Single
Product: LAN
Type: Module
Application: 10/100 Base-T Poe Plus
Series: LPXXXXANL
Packaging: Reel
Length: 12.7 mm
Width: 9.52 mm
Height: 5.8 mm
Brand: Wurth Electronics
Core Material: Ferrite
Current Rating: -
Maximum DC Current: 8 mA
Maximum DC Resistance: -
Power Rating: -
Primary Resistance: -
Product Type: LAN Transformers
Secondary Resistance: -
Shielding: Unshielded

Equivalent to 749012013  / 749012011
