Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 000-7044-37
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
000-7044-37 |
Cross PN: |
LPXXXXANL |
Turns Ratio: |
1CT:1CT |
Mounting: |
Surface Mount |
Ethernet: |
1x10/100/1000 Mbps |
Isolation Voltage: |
1500Vrms |
Capability: |
350mA DC |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
000-7044-37 |
Cross PN: |
LPXXXXANL |
Turns Ratio: |
1CT:1CT |
Mounting: |
Surface Mount |
Ethernet: |
1x10/100/1000 Mbps |
Isolation Voltage: |
1500Vrms |
Capability: |
350mA DC |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Mfr Package Description | ROHS COMPLIANT |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |

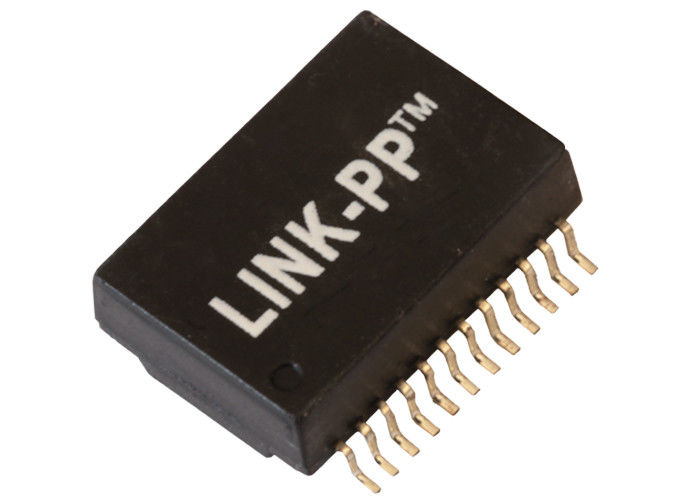

| Transformer Type | DATACOM TRANSFORMER |
| Application | LAN |
| Isolation Voltage | 1500.0 V |
| Manufacturer Series | 000-7044-37 |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 1 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Physical Dimension | 17.91mm X 12.19mm X 5.84mm |
| Primary Inductance | 350.0 µH |
| Turns Ratio (Np:Ns) | 1:1; 1:1 |
| Height | 5.84 mm |
| Length | 17.91 mm |
| Width | 12.19 mm |
| Additional Feature | HEIGHT DIM INCLUDES TERMINALS ALSO |
000-7044-37 Datasheet / Cross / Equivalent / Compatible PN.
