Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 749024012
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
749024012 |
Inductance: |
350µH |
Turns Ratio: |
1 : 1 |
Mounting Type: |
Surface Mount |
Dimension: |
L28.57XB12.70XH12.70 (mm) |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
749024012 |
Inductance: |
350µH |
Turns Ratio: |
1 : 1 |
Mounting Type: |
Surface Mount |
Dimension: |
L28.57XB12.70XH12.70 (mm) |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Mfr Package Description | ROHS COMPLIANT |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Transformer Type | DATACOM TRANSFORMER |
| Application | GENERAL PURPOSE |
| Approvals | CSA, UL |
| Insertion Loss | 1.3 dB |
| Isolation Voltage | 4000.0 V |
| LINK-PP Cross References | LPXXXXNL |
| Manufacturer Series | 749024012 |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 4 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Packing Method | TAPE & REEL |
| Physical Dimension | L28.57XB12.70XH12.70 (mm) |
| Primary Inductance | 350.0 µH |
| Sub Category | Other Transformers |
| Terminal Finish | Tin (Sn) |
| Turns Ratio (Np:Ns) | 1:1 |
| Height | 12.7 mm |
| Length | 28.57 mm |
| Width | 12.7 mm |

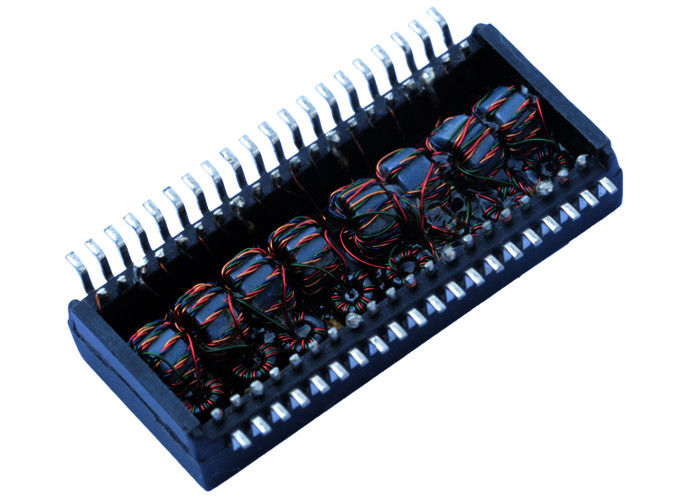

749024012 SMT Transformer Gigabit DATACOM LAN 10/100/1000BT Magnetic
