Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 749050010U
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
749050010A |
Equivalent: |
LPM0001NL |
Turns Ratio: |
1 : 1 |
Mounting Type: |
Surface Mount |
Dimension: |
17.91mm L X 14.00mm W X 5.84mm H |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
749050010A |
Equivalent: |
LPM0001NL |
Turns Ratio: |
1 : 1 |
Mounting Type: |
Surface Mount |
Dimension: |
17.91mm L X 14.00mm W X 5.84mm H |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| REACH Compliant | Yes |
| Status | Active |
| Transformer Type | DATACOM TRANSFORMER |
| Application | SIGNAL |
| Approvals | UL |
| Insertion Loss | 1.0 dB |
| Isolation Voltage | 1500.0 V |
| Manufacturer Series | 749050010U |
| Mounting Feature | SURFACE MOUNT |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Packing Method | TAPE & REEL |
| Physical Dimension | 14mm x 13.97mm x 6.6mm |
| Primary Inductance | 200.0 µH |
| Sub Category | Other Transformers |
| Height | 6.6 mm |
| Length | 14.0 mm |
| Width | 13.97 mm |

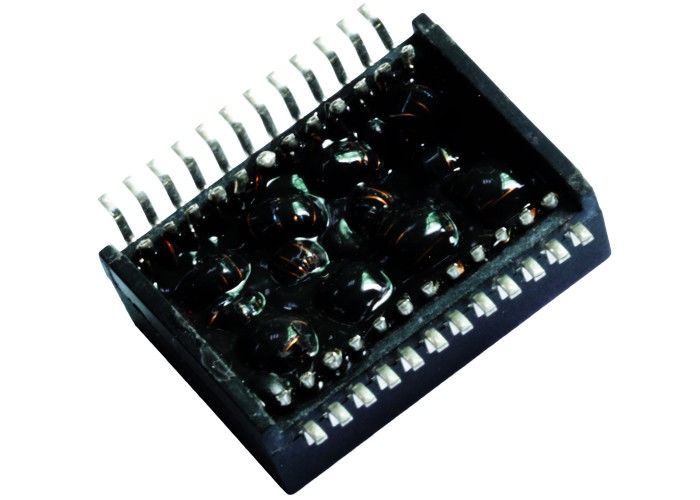

749050010U | LPM0001NL PHY 10Gigabit Ethernet Transformer 24pins SMD
