H1102HL | LP1102NL Ethernet Magnetic Transformers Audio & Signal 10/100Mbps

China H1102HL | LP1102NL Ethernet Magnetic Transformers Audio & Signal 10/100Mbps supplier
H1102HL | LP1102NL Ethernet Magnetic Transformers Audio & Signal 10/100Mbps supplier H1102HL | LP1102NL Ethernet Magnetic Transformers Audio & Signal 10/100Mbps supplier

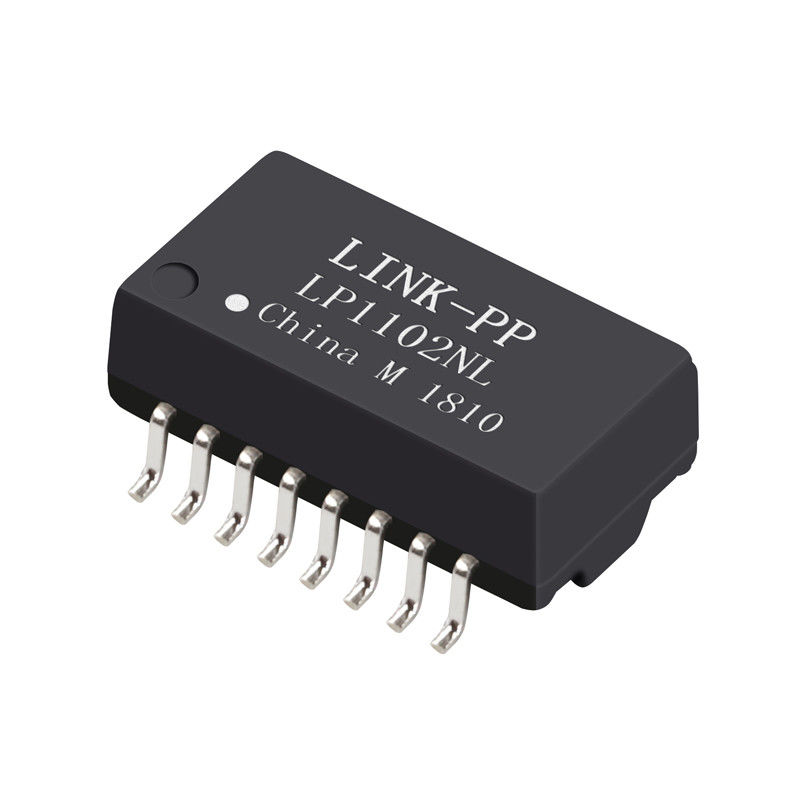

Large Image :  H1102HL | LP1102NL Ethernet Magnetic Transformers Audio & Signal 10/100Mbps

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H1102HL

Payment & Shipping Terms:

Minimum Order Quantity: 750/ 2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specification-1: H1102HL P.N: LP1102NL
Ethernet: 10Base-T Pins: 16
Port: Single Hipot: 1500V RMS
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

H1102HL | LP1102NL Ethernet Magnetic Transformers Audio & Signal 10/100Mbps

LINK-PP Equivalent Cross LP1102NL
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Transformer Type DATACOM TRANSFORMER
Application GENERAL PURPOSE
Isolation Voltage 1500.0 V
Manufacturer Series H1102HL
Mounting Feature SURFACE MOUNT
Number of Functions 1
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Physical Dimension L12.7XB9.4XH5.10 (mm)
Primary Inductance 350.0 µH
Turns Ratio (Np:Ns) 1:1; 1:1
Height 5.10 mm
Length 12.7 mm
Width 9.4 mm



H1102HL | LP1102NL Ethernet Magnetic Transformers Audio & Signal 10/100Mbps
