H1313NL 10 / 100 Telecom Transformer Magnetic MDL SIN 100D SM TU 16 Pins

China H1313NL 10 / 100 Telecom Transformer Magnetic MDL SIN 100D  SM TU 16 Pins supplier
H1313NL 10 / 100 Telecom Transformer Magnetic MDL SIN 100D  SM TU 16 Pins supplier H1313NL 10 / 100 Telecom Transformer Magnetic MDL SIN 100D  SM TU 16 Pins supplier

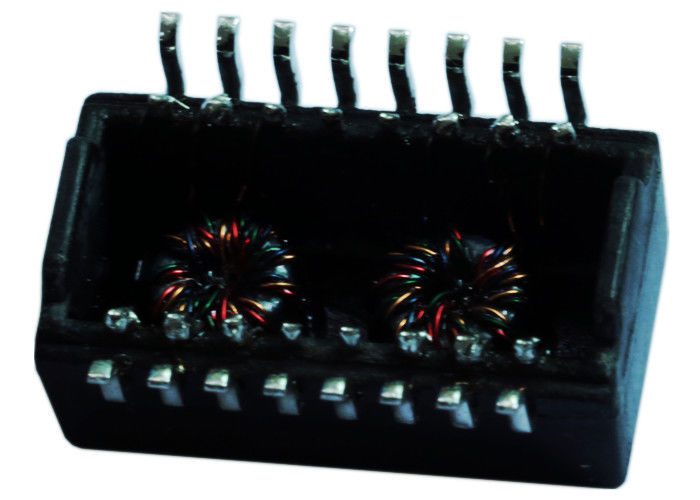

Large Image :  H1313NL 10 / 100 Telecom Transformer Magnetic MDL SIN 100D SM TU 16 Pins

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H1313NL

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specification: H1313NL Cross PN: LP1183NL
Turns Ratio: 1:1 Mounting Type: Surface Mount
Package: L12,70XB9,40XH5,08 (mm) Isolation Voltage: 1500.0 V
Temperature: 0°C - + 70°C Archivi Disponibil: PDF/3D/ISG/Stp/Step/Datasheet

H1313NL 10/100 Transformer Audio & Signal Telecom Magnetic For Network Protection



H1313NL 10/100 Transformer Telecom Magnetic MDL SIN 100D 1:1 SM TU 16pins
Specifications-1 H1313NL
Status Active
Specifications-2 H1313NLT
Specifications-3 H1313FNL / H1313FNLT
Equivalent Cross LP11XXANL
Transformer Type DATACOM TRANSFORMER
Application GENERAL PURPOSE
Isolation Voltage 1500.0 V
Manufacturer Series H1313NL
Mounting Feature SURFACE MOUNT
Number of Functions 2
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Physical Dimension D12.7XH7.116 (mm)
Primary Inductance 350.0 µH
Turns Ratio (Np:Ns) 1:1; 1:1
Diameter 12.7 mm
Height 7.116 mm
