Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H5067NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H5067NL |
P/N: |

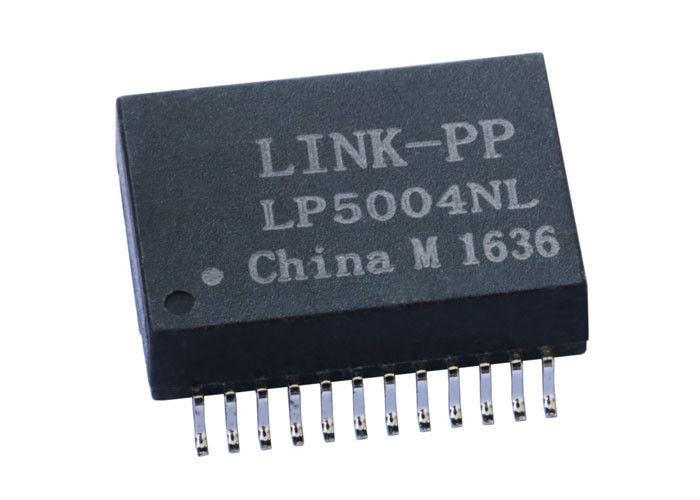

LP5004NL |
Measure: |
L17.53XB12.19XH5.71 (mm) |
Mounting: |
SMD |
Ethernet: |
1x10/100/1000Base-Tx |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
H5067NL |
P/N: |
LP5004NL |
Measure: |
L17.53XB12.19XH5.71 (mm) |
Mounting: |
SMD |
Ethernet: |
1x10/100/1000Base-Tx |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Specification Description | H5067NL |
| Status | Active |
| Transformer Type | PULSE TRANSFORMER |
| Application | GENERAL PURPOSE |
| Isolation Voltage | 1500.0 V |
| Manufacturer Series | H5067NL |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 4 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Physical Dimension | L17.53XB12.19XH5.71 (mm) |
| Primary Inductance | 350.0 µH |
| Turns Ratio (Np:Ns) | 1:1 |
| Height | 5.71 mm |
| Length | 17.53 mm |
| Width | 12.19 mm |
| Additional Feature | HEIGHT DIM INCLUDE TERMINALS ALSO |
| Specification Description-2 | H5067NLT |
| LINK-PP Equivalent PN | LP5004NL |
