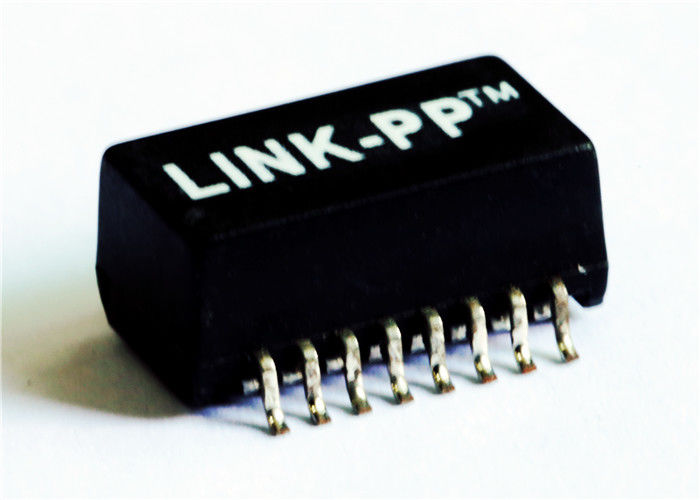

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HX1323NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
HX1323NL |
Family: |
10/100M Transformer |
Number Of Ports: |
Single |
Mounting: |
SMT |
PIN Number: |
16 |
Temperature: |
-40 TO +85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
HX1323NL |
Family: |
10/100M Transformer |
Number Of Ports: |
Single |
Mounting: |
SMT |
PIN Number: |
16 |
Temperature: |
-40 TO +85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Specifications | HX1323NL |
| REACH Compliant | Yes |
| LINK-PP Equivalent | LPXXXXANL |
| Status | Updated |
| Transformer Type | 10/100Base-tx Magnetic Transformer |
| Application | GENERAL PURPOSE |
| Insertion Loss | 1.2 dB |
| Isolation Voltage | 1500.0 V |
| Manufacturer Series | HX0060NL |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 2 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Primary Inductance | 150.0 µH |
| Turns Ratio (Np:Ns) | 1:1 |
| Height | 0.583 |
| Length | 0.46 |
| Width | 0.192inch |
| Additional Feature | HEIGHT DIM INCLUDE TERMINALS ALSO |
