23Z467SMNL TRANSFORMER FOR 10 BASE-T Ethernet 1CT:2CT 1CT:1CT

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 23Z467SMNL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

gigabit magnetics transformer

,

ethernet transformer

Specification:
23Z467SMNL
Family:
10 M Transformer
Number Of Ports:
Single
Mounting:
SMT
Size / Dimension:
L11.43XB6.73XH5.46 (mm)
PIN Number:
16
Temperature:
-40 TO +85℃
Archivi Disponibil:
PDF/3D/ISG/Stp/Step/Datasheet
Specification:
23Z467SMNL
Family:
10 M Transformer
Number Of Ports:
Single
Mounting:
SMT
Size / Dimension:
L11.43XB6.73XH5.46 (mm)
PIN Number:
16
Temperature:
-40 TO +85℃
Archivi Disponibil:
PDF/3D/ISG/Stp/Step/Datasheet

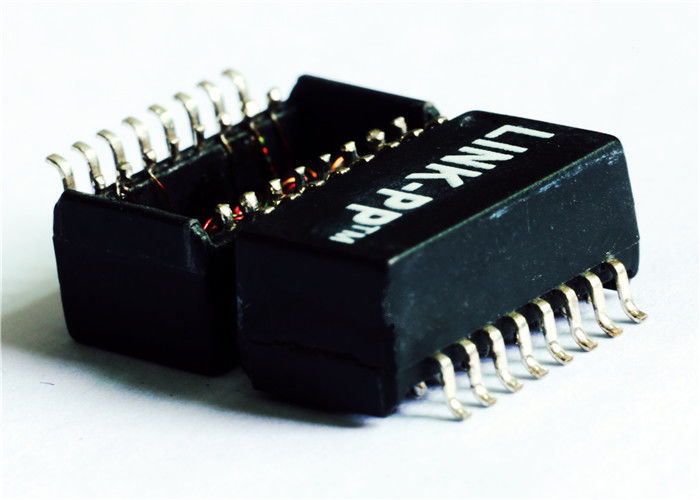

23Z467SMNL TRANSFORMER FOR 10 BASE-T Ethernet 1CT:2CT 1CT:1CT
23Z467SMNL TRANSFORMER FOR 10 BASE-T Ethernet 1CT:2CT 1CT:1CT



Specifications 23Z467SMNL
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Transformer Type DATACOM TRANSFORMER
Application 10 BASE-T
Approvals UL
Isolation Voltage 2000.0 V
Manufacturer Items 23Z467SMNL
Mounting Feature SURFACE MOUNT
LINK-PP PN Equivalent  Cross Compatible 100%
Number of Functions 1
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method TUBE
Physical Dimension L11.43XB6.73XH5.46 (mm)
Primary Inductance 140.0 µH
Turns Ratio (Np:Ns) 1CT:2CT; 1CT:1CT
Height 5.46 mm
Length 11.43 mm
Width 6.73 mm
Additional Feature HEIGHT DIM INCLUDES TERMINALS ALSO
