Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H1199NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H1199NL |
Cross PN: |
LP11XXNL |
Ethernet: |
1x 10/100 Auto |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Turns Ratio TX/RX: |
1CT:1CT |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
H1199NL |
Cross PN: |
LP11XXNL |
Ethernet: |
1x 10/100 Auto |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Turns Ratio TX/RX: |
1CT:1CT |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |

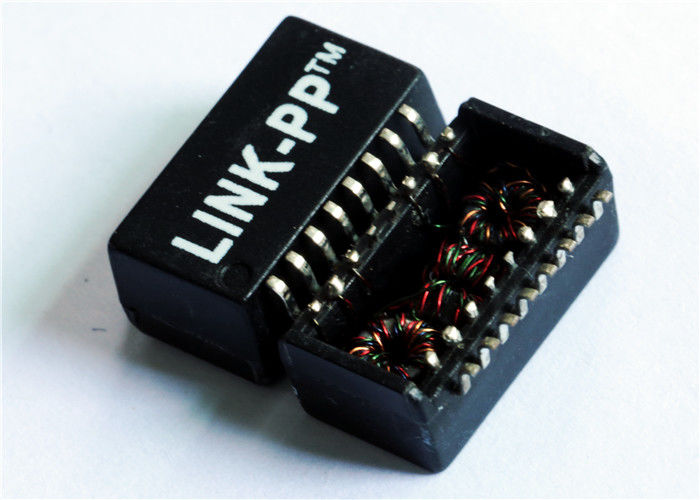

Telecom Transformer 1:1/1:1 1500Vrms -0.9dB Surface Mount H1199NL
XFRMR MAGNETIC 1PORT 1:1 10/100 H1199NL Cross
| Specifications | Equivalent to H1199NL/ H1199 |
| Product Category: | Audio Transformers / Signal Transformers |
| Manufacturer: | Pulse |
| RoHS: | Details |
| Series: | H1199 |
| Termination Style: | SMD/SMT |
| Frequency Range: | 1 MHz to 125 MHz |
| Inductance: | 350 uH |
| Isolation Voltage: | 1.5 kV |
| Operating Temperature Range: | 0 C to + 70 C |
| Number of Channels: | Single |
| Product: | LAN |
| Type: | Module |
| Application: | 100Base-TX |
| Length: | 12.7 mm |
| Width: | 7.11 mm |
| Height: | 6.22 mm |
| Packaging: | Bulk |
| Brand: | Made in China |
| Maximum DC Resistance: | 0.65 Ohms |
| Product Type: | Single Port Transformer |
