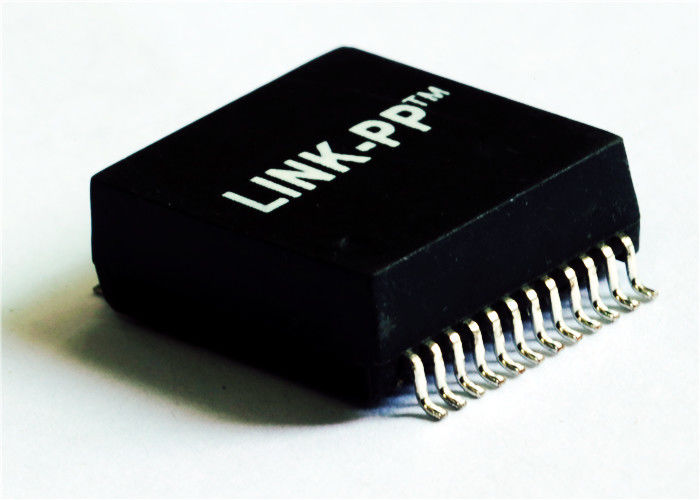

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H1305NLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H1305NLT |
P/N: |
LP50XXANL |
Measure: |
L15.11XB13.61XH6.12 (mm) |
Mounting: |
SMD |
Ethernet: |
2x10/100mpbs |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
H1305NLT |
P/N: |
LP50XXANL |
Measure: |
L15.11XB13.61XH6.12 (mm) |
Mounting: |
SMD |
Ethernet: |
2x10/100mpbs |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Specifications | H1305NL / H1305NLT Specification Cross Equivalent Compatible |
| EU RoHS Compliant | Yes |
| Status | Made In China |
| Transformer Type | DATACOM TRANSFORMER |
| Application | 10/100 BASE-TX; ETHERNET x2 |
| Isolation Voltage | 1500.0 V |
| Specifications Series | H1305NL Cross LINK-PP 100% |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 2 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Packing Method | TUBE |
| Physical Dimension | L15.11XB13.61XH6.12 (mm) |
| Turns Ratio (Np:Ns) | 1:1; 1:1 |
| Height | 6.12 mm |
| Length | 15.11 mm |
| Width | 13.61 mm |
| Additional Feature | HEIGHT DIMENSION INCLUDES TERMINALS ALSO |
