HX1305NL / HX1305NLT 100BaseTX SMD 2 Port Magnetic Transformer

China HX1305NL / HX1305NLT 100BaseTX SMD 2 Port Magnetic Transformer supplier
HX1305NL / HX1305NLT 100BaseTX SMD 2 Port Magnetic Transformer supplier HX1305NL / HX1305NLT 100BaseTX SMD 2 Port Magnetic Transformer supplier HX1305NL / HX1305NLT 100BaseTX SMD 2 Port Magnetic Transformer supplier

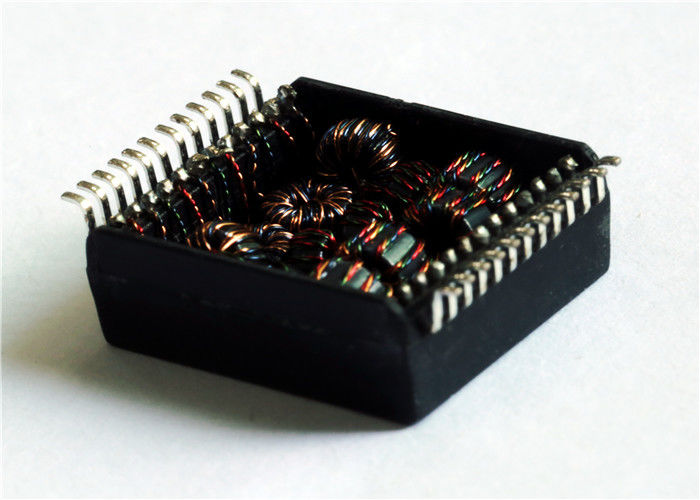

Large Image :  HX1305NL / HX1305NLT 100BaseTX SMD 2 Port Magnetic Transformer

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HX1305NLT

Payment & Shipping Terms:

Minimum Order Quantity: 1500
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: HX1305NLT P/N: LP50XXANL
Measure: L15.11XB13.61XH6.12 (mm) Mounting: SMD
Ethernet: 2x10/100mpbs Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

Sale HX1305NL / HX1305NLT XFRMR MODULE 2PORT 1:1 10/100 Specification Cross



Specifications H1305NL / H1305NLT Specification Cross Equivalent Compatible
EU RoHS Compliant Yes
Status Made In China
Transformer Type DATACOM TRANSFORMER
Application 10/100 BASE-TX; ETHERNET x2
Isolation Voltage 1500.0 V
Specifications Series H1305NL Cross LINK-PP 100%
Mounting Feature SURFACE MOUNT
Number of Functions 2
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method TUBE
Physical Dimension L15.11XB13.61XH6.12 (mm)
Turns Ratio (Np:Ns) 1:1; 1:1
Height 6.12 mm
Length 15.11 mm
Width 13.61 mm
Additional Feature HEIGHT DIMENSION INCLUDES TERMINALS ALSO



HX1305NL / HX1305NLT 100BaseTX SMD 2 Port Magnetic Transformer

HX1305NLT  Equivalent

HX1305NLT  Replacement

HX1305NL Cross
