Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

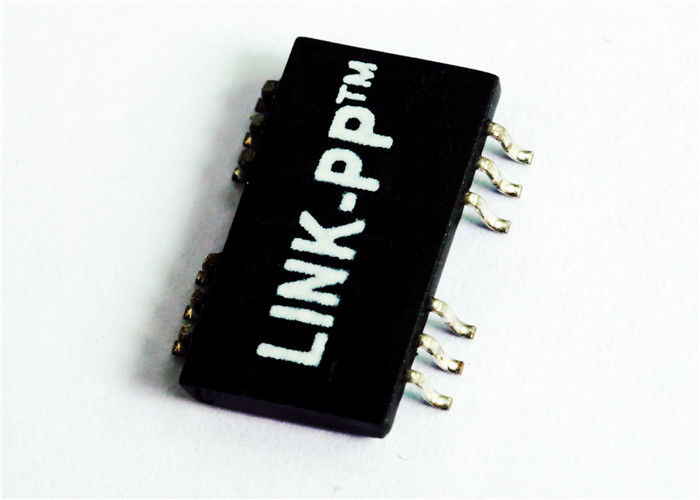

Model Number: H0020NL(T)
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H0020NL(T) |
Part Number: |
LP00XXNL |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Speed: |
10/100 Base-TX |
Application: |
NIC/HUB/Switch/Router/PC System/Printer/Server |
Temperature Range: |
0℃ To +70℃/-40℃ To +85℃ |
Professional Certificate: |
SGS/ISO9001:2008/UL/ISO 14001:2004/REACH168 |
Specifications: |
H0020NL(T) |
Part Number: |
LP00XXNL |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Speed: |
10/100 Base-TX |
Application: |
NIC/HUB/Switch/Router/PC System/Printer/Server |
Temperature Range: |
0℃ To +70℃/-40℃ To +85℃ |
Professional Certificate: |
SGS/ISO9001:2008/UL/ISO 14001:2004/REACH168 |
| Mfr Package Description | H0020NLT / H0020NL Equivalent Specification |
| EU RoHS Compliant | Yes |
| Status | Discontinued |
| Transformer Type | DATACOM TRANSFORMER |
| Application | LAN; 10/100 BASE-TX; ETHERNET |
| Isolation Voltage | 1500.0 V |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 1 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Packing Method | TUBE |
| Physical Dimension | L12.7XB10.16XH2.08 (mm) |
| Turns Ratio (Np:Ns) | 1:1; 1:1 |
| Height | 2.08 mm |
| Length | 12.7 mm |
| Width | 10.16 mm |
| Additional Feature | HEIGHT DIMENSION INCLUDES TERMINAL ALSO |
MODULE PC CARD SNGL LAN 16PCMCIA 10/100Base-TX SMD 1Ohm 1-Port
