H1200NLT , H1200NL XFRMR MODULE Transformers 100BaseTX SMD 2-Port

China H1200NLT , H1200NL XFRMR MODULE Transformers 100BaseTX SMD 2-Port supplier
H1200NLT , H1200NL XFRMR MODULE Transformers 100BaseTX SMD 2-Port supplier H1200NLT , H1200NL XFRMR MODULE Transformers 100BaseTX SMD 2-Port supplier H1200NLT , H1200NL XFRMR MODULE Transformers 100BaseTX SMD 2-Port supplier

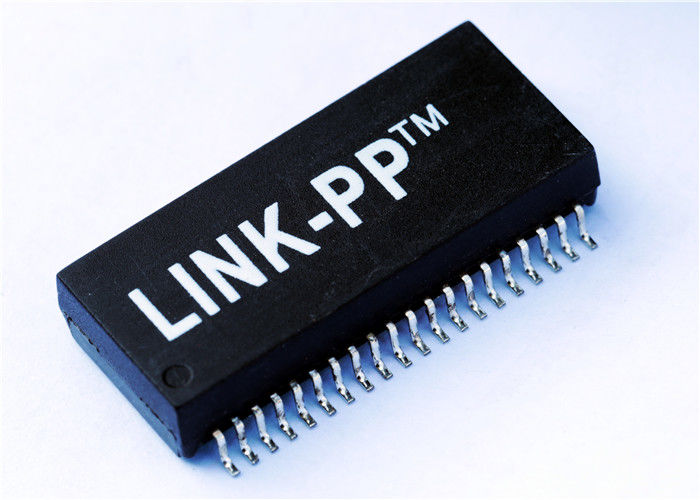

Large Image :  H1200NLT , H1200NL XFRMR MODULE Transformers 100BaseTX SMD 2-Port

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H1200NLT

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: H1200NLT P/N: LP50XXANL
Measure: L28.58XB16.26XH5.84 (mm) Mounting: SMD
Ethernet: 10/100Base-TX X2 Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

H1200NLT , H1200NL XFRMR MODULE Transformers 100BaseTX SMD 2-Port



RoHS reflow temperature rating 245°C
Meets IEEE 802.3 specification
Some models offer AutoMDIX capability



Specification Compatible H1200NLT , H1200NL
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Transformer Type DATACOM TRANSFORMER
Application 10/100 BASE-TX
Approvals IEEE
Insertion Loss 1.0 dB
Isolation Voltage 1500.0 V
Manufacturer Series LPXXXXNL
Mounting Feature SURFACE MOUNT
Number of Functions 2
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method TAPE & REEL; TUBE
Physical Dimension 28.58mm X 16.26mm X 5.84mm
Primary Inductance 350.0 µH
Turns Ratio (Np:Ns) 1:1; 1:1
Height 5.84 mm
Length 28.58 mm
Width 16.26 mm
Additional Feature HEIGHT AND BREADTH DIMENSIONS INCLUDE TERMINALS ALSO



H1200NL Equivalent Cross

H1200NLT Compatible Replacement Part

H1244NLT Equivalent

H1244NL Equivalent
