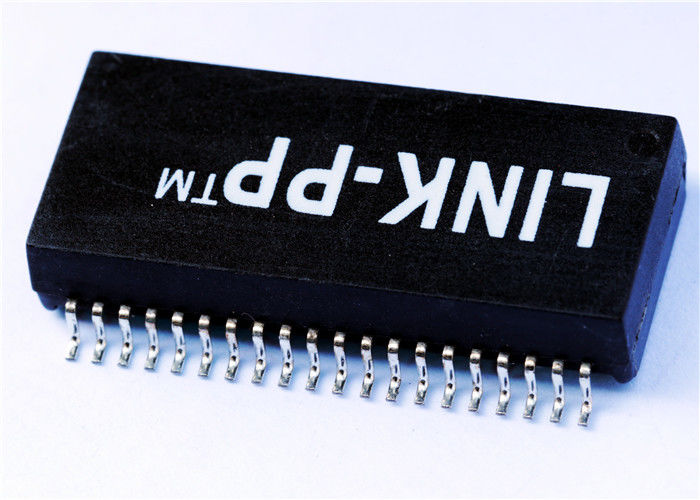

Quad Port Magnetics H1044NL , H1044NLT 10/100 Transformer Isolation SMD

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: H1044NLT

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

single port transformer

,

dual port transformer

Specifications:
H1044NLT
P/N:
LP11XXNL
Measure:
28.58mm L X 12.19mm W X 5.84mm H
Mounting:
SMT
Ethernet:
10/100Base-TX X 4
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
H1044NLT
P/N:
LP11XXNL
Measure:
28.58mm L X 12.19mm W X 5.84mm H
Mounting:
SMT
Ethernet:
10/100Base-TX X 4
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Quad Port Magnetics H1044NL , H1044NLT 10/100 Transformer Isolation SMD
Quad Port Magnetics H1044NL , H1044NLT 10/100 Transformer Isolation SMD



RoHS peak reflow temperature rating: 245°C
Meets IEEE 802.3 specification H1044NLT Specifications
Models designed to support four single or double-stacked RJ-45 connectors

Audio Transformers / Signal Transformers 10/100Base-TX SMD 4-Port

10/100Base-TX Quad Port Transformer Modules H1044NL Equivalent Cross

For Use with Tranceivers Requiring 1:1 Transmit and Receive Turns Ratio



Series

 Quad Port 100Base-Tx Magnetic Transformers

Packaging

Tape & Reel (TR)

Part Status

Updated

Transformer Type

Isolation and Data Interface (Encapsulated)

Equivalent

LINK-PP LP11XXNL Series

Turns Ratio - Primary:Secondary

1 : 1 Transmitter, 1 : 1 Receiver

Mounting Type

Surface Mount

Size / Dimension

28.58mm L x 12.19mm W

Height - Seated (Max)

5.84mm

Weight

0.14 oz (3.99g)







H1200NL Equivalent Cross

H1200NLT Compatible Replacement Part

H1244NLT Equivalent

H1244NL Equivalent
